Line follower robot simulator for OpenAI Gym.

Gym-Line-Follower is a simulator for a line following robot. It is designed for developing line following algorithms using reinforcement learning. The simulator is written in Python and uses Pybullet engine for accurate physics simulation. Gym-Line-Follower is fast and customizable. It currently supports differential drive robots.

Observation can either be a point sequence representing line in front of the robot or a robot point of view camera image.

This simulator was created as a part of masters thesis at Faculty of Mechanical Engineering, University of Ljubljana.

Requirements:

• Python 3.5+
• OpenAI Gym
• NumPy
• Shapely
• Pybullet
• OpenCV

git clone https://github.com/nplan/gym-line-follower.git
pip3 install -e gym-line-follower

Requirements will be installed automatically. By using -e the environment is installed in place and is editable.

You must run import gym_line_follwer before import gym. This adds the environment to gym registry and makes it available to gym.make().

Requirements for execution of examples:

• Keras 2.3.1
• Tensorflow 1.14
• Keras-RL 0.4.2

pip install keras==2.3.1 tensorflow==1.14 keras-rl

Load the environment as usual.

import gym
env = gym.make("LineFollower-v0")

Line follower is placed at the beginning of a closed loop track. The objective is to follow the track as quickly and accurately as possible. Progress is measured in percent of track driven. Episode finishes when the track is completed (whole loop driven), when the follower gets to far from the track or when the follower moves in the wrong track direction for some distance.

Randomization: Line track is generated randomly at the start of each episode and the starting angle of follower bot relative to the track direction is sampled from interval (-0.2, 0.2) rad. Other parameters are fixed and are specified in files bot_config.json and follower_bot.urdf.

Observation Space: Box(16) - 8 points with (x, y) coordinates representing line, arranged in order x1, y1, x2, y2, ... Origin of the coordinate system is robots center of rotation. x in range (0, 0.3), y in range (-0.2, 0.2).

Action Space: Box(2) - 2 values representing left and right motor power in range (-1, 1).

Reward: Track is split in 500 checkpoints that must be reached for the episode to complete successfully. When a checkpoint is reached, a reward is calculated using the following equations:

checkpoint_reward = 1000. / nb_checkpoints
track_error_norm = track_err * (1.0 / max_track_error)
reward = checkpoint_reward * (1.0 - track_error_norm) ** 2

Where nb_checkpoints is number of track checkpoints (500), track_error is distance between follower bot center of rotation and the closes point on track, max_track_error is maximum allowed track_error.

At each step a value of 0.2 is subtracted from reward to encourage quick completion of the track.

If the episode finishes before the track is complete, a reward of -100 is given.

Same as LineFollower-v0 except observation is a rendered image from forward facing camera, returned as an RGB image array shape (240, 320, 3), type uint8.

Custom environments can be built quickly by making the environment using the class constructor with arguments.

from gym_line_follower.envs import LineFollowerEnv
env = LineFollowerEnv(gui=False, nb_cam_pts=8, max_track_err=0.3, speed_limit=0.2,
                      max_time=100, randomize=True, obsv_type="latch")

Description of arguments is provided in source code.

The simulator can be configured with parameters inside the file bot_config.json. Randomization at the beginning of each episode can be enabled for each parameter. You must format the json file according to the following rules:

If value randomization at a key is desired, provided value must be a dict with entries:

• 'range': [a, b] - random uniform sample in range a, b
• 'choice': [a, b, c, d, ...] - random choice of one value from the list
• 'default': a - default value

Default value must always be provided. One of keys 'range' or 'choice' must be provided. If value at key is not a dict no randomization is performed.

Randomization is enabled with the randomize parameter.

WARNING: Randomization is not yet working to the full extent. Some parameters are still hardcoded inside the file follower_bot.urdf. The code to dynamically build this file from parameters inside bot_config.json will be added in the future.

• "human" - display a live matplotlib plot with 2D representation of line track and representation points.

• "rgb_array" - same as "human" but return an RGB image array instead of displaying plot.

• "pov" - return an RGB image array from a forward facing point-of-view camera.

  NOTE: Virtual camera position and viewing angle is currently hardcoded to match camera window parameters in bot_config.json. This will be improved in the future.

• "gui" - make the pybullet GUI run at real-time FPS.

Track can be rendered with different colors and background (floor) textures. This is not enabled by default. Desired parameters can be set in track_render_config.json file, which must be formatted in the same way as described in Configuration and Randomization section.

Track rendering randomization can be enabled as following:

render_params = RandomizerDict(json.load(open("track_render_config.json", "r")))
env = LineFollowerEnv(track_render_params=render_params)

This feature can be used in combination with "pov" render mode for automatic generation of labeled image data, that can be used for training a line detector neural network.

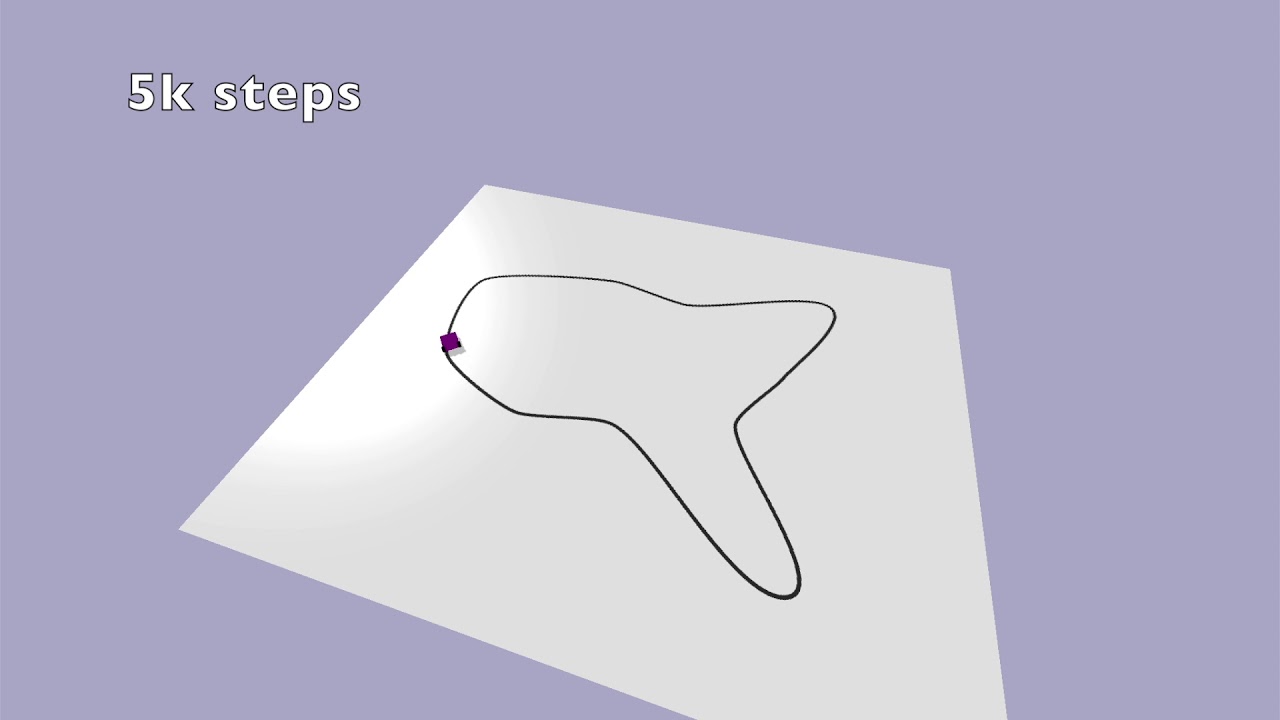

The environment was used to train an agent using DDPG algorithm. The agent learns to precisely follow the line after 100k steps. Training code and trained models are available in the examples folder. The agent performance after increasing numbers of training steps can be seen in the following video.
