Platforms:
- iOS
- Android
People using a version < 1.0.1 please move to 1.0.1 since the project changed a lot internally to support the stable TwilioVideo version.
- react-native >= 0.40.0: install [email protected]
- react-native < 0.40.0: install [email protected]
yarn add https://github.com/blackuy/react-native-twilio-video-webrtcnpm install https://github.com/blackuy/react-native-twilio-video-webrtc --saveTo use this library with Expo we recommend using our config plugin that you can configure like the following example:
{
"name": "my app",
"plugins": [
[
"react-native-twilio-video-webrtc",
{
"cameraPermission": "Allow $(PRODUCT_NAME) to access your camera",
"microphonePermission": "Allow $(PRODUCT_NAME) to access your microphone"
}
]
]
}Also you will need to install expo-build-properties package:
npx expo install expo-build-propertiesThe plugin support the following properties:
-
cameraPermission: Specifies the text to show when requesting the camera permission to the user. -
microphonePermission: Specifies the text to show when requesting the microphone permission to the user.
- Add this package to your Podfile
pod 'react-native-twilio-video-webrtc', path: '../node_modules/react-native-twilio-video-webrtc'Note that this will automatically pull in the appropriate version of the underlying TwilioVideo pod.
- Install Pods with
pod install- Add the Twilio dependency to your Podfile
pod 'TwilioVideo'- Install Pods with
pod install- Add the XCode project to your own XCode project's
Librariesdirectory from
node_modules/react-native-twilio-video-webrtc/ios/RNTwilioVideoWebRTC.xcodeproj
-
Add
libRNTwilioVideoWebRTC.ato your XCode project target'sLinked Frameworks and Libraries -
Update
Build Settings
Find Search Paths and add $(SRCROOT)/../node_modules/react-native-twilio-video-webrtc/ios with recursive to Framework Search Paths and Library Search Paths
Be sure to increment your iOS Deployment Target to at least iOS 11 through XCode and your Podfile contains
platform :ios, '11.0'
To enable camera usage and microphone usage you will need to add the following entries to your Info.plist file:
<key>NSCameraUsageDescription</key>
<string>Your message to user when the camera is accessed for the first time</string>
<key>NSMicrophoneUsageDescription</key>
<string>Your message to user when the microphone is accessed for the first time</string>
TwilioVideo version 1.3.8 (latest) has the following know issues.
- Participant disconnect event can take up to 120 seconds to occur. Issue 99
- AVPlayer audio content does not mix properly with Room audio. Issue 62
As with iOS, make sure the package is installed:
yarn add https://github.com/blackuy/react-native-twilio-video-webrtcThen add the library to your settings.gradle file:
include ':react-native-twilio-video-webrtc'
project(':react-native-twilio-video-webrtc').projectDir = new File(rootProject.projectDir, '../node_modules/react-native-twilio-video-webrtc/android')
And include the library in your dependencies in android/app/build.gradle:
(if using gradle 4 or lower, replace implementation with compile below)
dependencies {
.....
.....
.....
implementation project(':react-native-twilio-video-webrtc')
}
You will also need to update this file so that you compile with java 8 features:
android {
compileOptions {
sourceCompatibility 1.8
targetCompatibility 1.8
}
}
Now you're ready to load the package in MainApplication.java. In the imports section, add this:
import com.twiliorn.library.TwilioPackage;Then update the getPackages() method:
protected List<ReactPackage> getPackages() {
return Arrays.<ReactPackage>asList(
...
new TwilioPackage()
);
}For most applications, you'll want to add camera and audio permissions to your AndroidManifest.xml file:
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-feature android:name="android.hardware.camera" android:required="false" />
<uses-feature android:name="android.hardware.camera.autofocus" android:required="false" />
<uses-feature android:name="android.hardware.microphone" android:required="false" />Newer versions of Android have a different permissions model. You will need to use the PermissionsAndroid
class in react-native in order to request the CAMERA and RECORD_AUDIO permissions.
Under default settings, the Android build will fail if the total number of symbols exceeds a certain threshold. If you should encounter this issue when adding this library (e.g., if your build fails with com.android.dex.DexIndexOverflowException), you can turn on jumbo mode by editing your app/build.gradle:
android {
...
dexOptions {
jumboMode true
}
}
If you are using proguard (very likely), you will also need to ensure that the symbols needed by
this library are not stripped. To do that, add these two lines to proguard-rules.pro:
-keep class com.twilio.** { *; }
-keep class tvi.webrtc.** { *; }
You can see the documentation here.
We have three important components to understand:
import {
TwilioVideo,
TwilioVideoLocalView,
TwilioVideoParticipantView,
} from "react-native-twilio-video-webrtc";TwilioVideo/ is responsible for connecting to rooms, events delivery and camera/audio.TwilioVideoLocalView/ is responsible local camera feed viewTwilioVideoParticipantView/ is responsible remote peer's camera feed view
Here you can see a complete example of a simple application that uses almost all the apis:
import React, { Component, useRef } from "react";
import {
TwilioVideoLocalView,
TwilioVideoParticipantView,
TwilioVideo,
} from "react-native-twilio-video-webrtc";
const Example = (props) => {
const [isAudioEnabled, setIsAudioEnabled] = useState(true);
const [isVideoEnabled, setIsVideoEnabled] = useState(true);
const [status, setStatus] = useState("disconnected");
const [participants, setParticipants] = useState(new Map());
const [videoTracks, setVideoTracks] = useState(new Map());
const [token, setToken] = useState("");
const twilioRef = useRef(null);
const _onConnectButtonPress = () => {
twilioRef.current.connect({ accessToken: token });
setStatus("connecting");
};
const _onEndButtonPress = () => {
twilioRef.current.disconnect();
};
const _onMuteButtonPress = () => {
twilioRef.current
.setLocalAudioEnabled(!isAudioEnabled)
.then((isEnabled) => setIsAudioEnabled(isEnabled));
};
const _onFlipButtonPress = () => {
twilioRef.current.flipCamera();
};
const _onRoomDidConnect = ({ roomName, error }) => {
console.log("onRoomDidConnect: ", roomName);
setStatus("connected");
};
const _onRoomDidDisconnect = ({ roomName, error }) => {
console.log("[Disconnect]ERROR: ", error);
setStatus("disconnected");
};
const _onRoomDidFailToConnect = (error) => {
console.log("[FailToConnect]ERROR: ", error);
setStatus("disconnected");
};
const _onParticipantAddedVideoTrack = ({ participant, track }) => {
console.log("onParticipantAddedVideoTrack: ", participant, track);
setVideoTracks((originalVideoTracks) => {
originalVideoTracks.set(track.trackSid, {
participantSid: participant.sid,
videoTrackSid: track.trackSid,
});
return new Map(originalVideoTracks);
});
};
const _onParticipantRemovedVideoTrack = ({ participant, track }) => {
console.log("onParticipantRemovedVideoTrack: ", participant, track);
setVideoTracks((originalVideoTracks) => {
originalVideoTracks.delete(track.trackSid);
return new Map(originalVideoTracks);
});
};
return (
<View style={styles.container}>
{status === "disconnected" && (
<View>
<Text style={styles.welcome}>React Native Twilio Video</Text>
<TextInput
style={styles.input}
autoCapitalize="none"
value={token}
onChangeText={(text) => setToken(text)}
></TextInput>
<Button
title="Connect"
style={styles.button}
onPress={_onConnectButtonPress}
></Button>
</View>
)}
{(status === "connected" || status === "connecting") && (
<View style={styles.callContainer}>
{status === "connected" && (
<View style={styles.remoteGrid}>
{Array.from(videoTracks, ([trackSid, trackIdentifier]) => {
return (
<TwilioVideoParticipantView
style={styles.remoteVideo}
key={trackSid}
trackIdentifier={trackIdentifier}
/>
);
})}
</View>
)}
<View style={styles.optionsContainer}>
<TouchableOpacity
style={styles.optionButton}
onPress={_onEndButtonPress}
>
<Text style={{ fontSize: 12 }}>End</Text>
</TouchableOpacity>
<TouchableOpacity
style={styles.optionButton}
onPress={_onMuteButtonPress}
>
<Text style={{ fontSize: 12 }}>
{isAudioEnabled ? "Mute" : "Unmute"}
</Text>
</TouchableOpacity>
<TouchableOpacity
style={styles.optionButton}
onPress={_onFlipButtonPress}
>
<Text style={{ fontSize: 12 }}>Flip</Text>
</TouchableOpacity>
<TwilioVideoLocalView enabled={true} style={styles.localVideo} />
</View>
</View>
)}
<TwilioVideo
ref={twilioRef}
onRoomDidConnect={_onRoomDidConnect}
onRoomDidDisconnect={_onRoomDidDisconnect}
onRoomDidFailToConnect={_onRoomDidFailToConnect}
onParticipantAddedVideoTrack={_onParticipantAddedVideoTrack}
onParticipantRemovedVideoTrack={_onParticipantRemovedVideoTrack}
/>
</View>
);
};
AppRegistry.registerComponent("Example", () => Example);To run the example application:
- Move to the Example directory:
cd Example - Install node dependencies:
yarn install - Install objective-c dependencies:
cd ios && pod install - Open the xcworkspace and run the app:
open Example.xcworkspace
- Make sure your pod dependencies are updated. If you manually specified a pod version, you'll want to update it as follows:
s.dependency 'TwilioVideo', '~> 2.2.0'
-

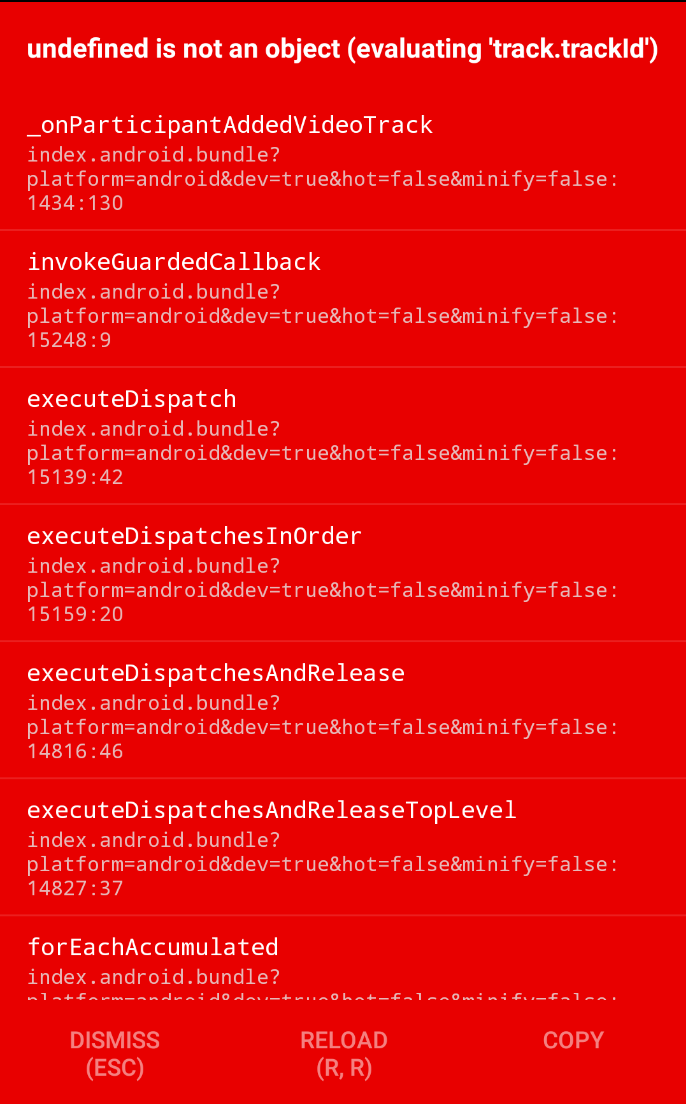

Both participants and tracks are uniquely identified by their
sid/trackSidfield. ThetrackIdfield no longer exists and should be replaced bytrackSid. Commensurate with this change, participant views now expectparticipantSidandvideoTrackSidkeys in thetrackIdentityprop (instead ofidentityandtrackId). -
Make sure you're listening to participant events via
onParticipant{Added/Removed}VideoTrackrather thanonParticipant{Enabled/Disabled}Track.
- Martín Fernández [email protected]
- Gaston Morixe [email protected]
