AFL分析笔记-一
0x00 前言
总结师傅们笔记,主要源码分析。
0x01 代码覆盖率
代码覆盖率是fuzz中基本概念,先了解清这个概念后面的插装编译等概念才好理解。
代码覆盖率是一种度量代码的覆盖程度的方式,也就是指源代码中的某行代码是否已执行;对二进制程序,还可将此概念理解为汇编代码中的某条指令是否已执行。对fuzz来说,当然希望每句代码都能被检测到,覆盖率越高越好。
计量方式主要为三种:函数,基本块,边界
插桩
插桩是为了覆盖率而实行的方法。
afl-gcc.c
afl-gcc是gcc的一个封装(wrapper)
主要三个功能
find_as(argv[0]); //找到gcc/clang/llvm编译器
edit_params(argc, argv); //处理参数
execvp(cc_params[0], (char**)cc_params);//执行
打印出cc_params
,看看真正的参数是什么
gcc -o test test.c -B /usr/local/lib/afl -g -O3 -funroll-loops -D__AFL_COMPILER=1 -DFUZZING_BUILD_MODE_UNSAFE_FOR_PRODUCTION=1
看看参数的意思。用了编译优化,指定了编译的标志,最终要的是-B
指定了编译器(Assembler)
-funroll-loops 执行循环强度消除并消除在循环内部使用的变量。这是用简单而快速的操作(如加法和减法)替代耗时操作(如乘法和除法)的过程
-B <目录> 将 <目录> 添加到编译器的搜索路径中
#ifdef FUZZING_BUILD_MODE_UNSAFE_FOR_PRODUCTION /* a flag also shared with libfuzzer) or */
#ifdef __AFL_COMPILER /* (this one is just for AFL). */

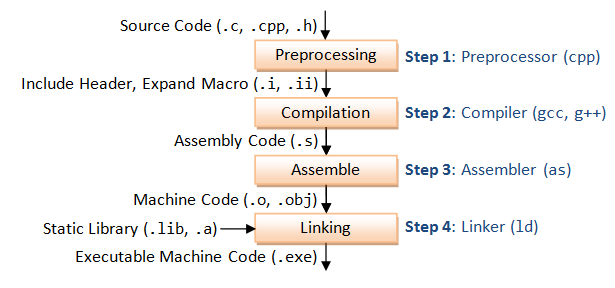

这一步正是汇编文件通过as进一步编译成二进制文件,这里替换了Assembler,当然为了插桩
afl-as.c和afl-as.h

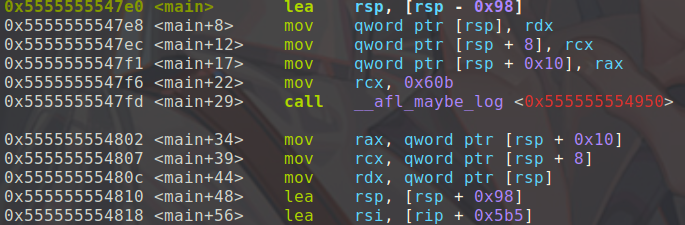

反汇编刚才生成的test,会发现插了一些插入了额外的汇编指令
这两个文件被单独提出来可以来解释这里是怎么操作的
The sole purpose of this wrapper is to preprocess assembly files generated by GCC / clang and inject the instrumentation bits included from afl-as.h. It is automatically invoked by the toolchain when compiling programs using afl-gcc / afl-clang.
主要是处理不同平台设置标志,处理参数等等.重要函数add_instrumentation
fprintf将插桩用的汇编用fprintf
插如合适的地方
static void add_instrumentation(void){
......
while (fgets(line, MAX_LINE, inf)) {//读取每行
......
fprintf(outf, use_64bit ? trampoline_fmt_64 : trampoline_fmt_32,
R(MAP_SIZE));//插入,注意R(MAP_SIZE)
......
//下面有意思是怎么判断合适的地方插入,选择分支,有兴趣自己看看
}
}
下面分别是32位和64位的,和调试看的一样
static const u8* trampoline_fmt_32 =
"\n"
"/* --- AFL TRAMPOLINE (32-BIT) --- */\n"
"\n"
".align 4\n"
"\n"
"leal -16(%%esp), %%esp\n" //太高栈
"movl %%edi, 0(%%esp)\n" //保存寄存器
"movl %%edx, 4(%%esp)\n"
"movl %%ecx, 8(%%esp)\n"
"movl %%eax, 12(%%esp)\n"
"movl $0x%08x, %%ecx\n" //保存随机数
"call __afl_maybe_log\n" //调用__afl_maybe_log
"movl 12(%%esp), %%eax\n"
"movl 8(%%esp), %%ecx\n"
"movl 4(%%esp), %%edx\n"
"movl 0(%%esp), %%edi\n"
"leal 16(%%esp), %%esp\n"
"\n"
"/* --- END --- */\n"
"\n";
static const u8* trampoline_fmt_64 =
"\n"
"/* --- AFL TRAMPOLINE (64-BIT) --- */\n"
"\n"
".align 4\n"
"\n"
"leaq -(128+24)(%%rsp), %%rsp\n"
"movq %%rdx, 0(%%rsp)\n"
"movq %%rcx, 8(%%rsp)\n"
"movq %%rax, 16(%%rsp)\n"
"movq $0x%08x, %%rcx\n"
"call __afl_maybe_log\n"
"movq 16(%%rsp), %%rax\n"
"movq 8(%%rsp), %%rcx\n"
"movq 0(%%rsp), %%rdx\n"
"leaq (128+24)(%%rsp), %%rsp\n"
"\n"
"/* --- END --- */\n"
"\n";
所以能看到,插桩是为了统计覆盖率。至于具体怎么实现,继续看后面
fork service
这是一种为了不使用execve()
函数提高效率想出来的办法,省掉动态链接等过程,在lcamtuf的blog上也有详细的介绍。
afl-fuzz.c
EXP_ST void init_forkserver(char** argv) {
int st_pipe[2], ctl_pipe[2];//命令管道和状态管道
......
execv(target_path, argv); //执行fork server
}
有两个重点
- 怎么重复执行子进程
- 记录子进程的状态
开始fork service确认创建完毕
/* Close the unneeded endpoints. */
//关闭不需要的通道
close(ctl_pipe[0]);
close(st_pipe[1]);
//读取通道状态命令
fsrv_ctl_fd = ctl_pipe[1];
fsrv_st_fd = st_pipe[0];
......
rlen = read(fsrv_st_fd, &status, 4);//从状态通道读取4个字节
/* If we have a four-byte "hello" message from the server, we're all set.
Otherwise, try to figure out what went wrong. */
if (rlen == 4) {//判断读取是否成功
OKF("All right - fork server is up.");
return;
}
__afl_maybe_log()
这里因为AFL自带的延时检测,所以没法调试看,这里只有看源码
这里先检测是否分配到公共内存,__afl_area_ptr
里面就是地址,否则先调用__afl_setup
初始化
.text:0000000000000950 lahf
.text:0000000000000951 seto al
.text:0000000000000954 mov rdx, cs:__afl_area_ptr
.text:000000000000095B test rdx, rdx
.text:000000000000095E jz short __afl_setup
__afl_forkserver
写4个字节到状态管道st_pipe[0]
,forkserver告诉fuzzer自己准备好了,而这正好是rlen = read(fsrv_st_fd, &status, 4);
中等待的信息
.text:0000000000000ABB __afl_forkserver:
.text:0000000000000ABB push rdx
.text:0000000000000ABC push rdx
.text:0000000000000ABD mov rdx, 4 ; n
.text:0000000000000AC4 lea rsi, __afl_temp ; buf
.text:0000000000000ACB mov rdi, 0C7h ; fd
.text:0000000000000AD2 call _write
.text:0000000000000AD7 cmp rax, 4
.text:0000000000000ADB jnz __afl_fork_resume
__afl_fork_wait_loop
fork server
直到从状态管道read
到4个字节表明fuzzer
准备好了
text:0000000000000AE1 mov rdx, 4 ; nbytes
.text:0000000000000AE8 lea rsi, __afl_temp ; buf
.text:0000000000000AEF mov rdi, 0C6h ; status
.text:0000000000000AF6 call _read
.text:0000000000000AFB cmp rax, 4
.text:0000000000000AFF jnz __afl_die
.text:0000000000000B05 call _fork
.text:0000000000000B0A cmp rax, 0
.text:0000000000000B0E jl __afl_die
.text:0000000000000B14 jz short __afl_fork_resume
记录子进程的pid,一旦子进程执行完了,通过状态管道发送到fuzzer
继续执行
.text:0000000000000B16 mov cs:__afl_fork_pid, eax
.text:0000000000000B1C mov rdx, 4 ; n
.text:0000000000000B23 lea rsi, __afl_fork_pid ; buf
.text:0000000000000B2A mov rdi, 0C7h ; fd
.text:0000000000000B31 call _write
.text:0000000000000B36 mov rdx, 0 ; options
.text:0000000000000B3D lea rsi, __afl_temp ; stat_loc
.text:0000000000000B44 mov rdi, qword ptr cs:__afl_fork_pid ; pid
.text:0000000000000B4B call _waitpid
.text:0000000000000B50 cmp rax, 0
.text:0000000000000B54 jle __afl_die
.text:0000000000000B5A mov rdx, 4 ; n
.text:0000000000000B61 lea rsi, __afl_temp ; buf
.text:0000000000000B68 mov rdi, 0C7h ; fd
.text:0000000000000B6F call _write
.text:0000000000000B74 jmp __afl_fork_wait_loop
用伪代码更能看清楚逻辑
if ( write(0xC7, &_afl_temp, 4uLL) == 4 )
{
while ( 1 )
{
v25 = 0xC6;
if ( read(0xC6, &_afl_temp, 4uLL) != 4 )
break;
LODWORD(v26) = fork();
if ( v26 < 0 )
break;
if ( !v26 )
goto __afl_fork_resume;
_afl_fork_pid = v26;
write(0xC7, &_afl_fork_pid, 4uLL);
v25 = _afl_fork_pid;
LODWORD(v27) = waitpid(_afl_fork_pid, &_afl_temp, 0);
if ( v27 <= 0 )
break;
write(199, &_afl_temp, 4uLL);
}
_exit(v25);
}
在fuzzer
这边来看,发出请求,接受状态,根据状态管道判断执行结果......
if ((res = write(fsrv_ctl_fd, &prev_timed_out, 4)) != 4); //启动fork server
if ((res = read(fsrv_st_fd, &child_pid, 4)) != 4)
.......
/* Report outcome to caller. */
if (WIFSIGNALED(status) && !stop_soon) {
kill_signal = WTERMSIG(status);
if (child_timed_out && kill_signal == SIGKILL) return FAULT_TMOUT;
return FAULT_CRASH;
}
分支记录
如何判断这条路径(代码)执行过,后面还要根据这些记录对后面变异有帮助。既要节约空间又要有效率,那单链表之类的肯定不能用,AFL用的是二元tuple(跳转的源地址和目标地址)来记录分支信息。
例如:
A->B->C->D->A-B
可以用[A,B] [B,C] [C,D] [D,A]四个二元组表示,只需要记录跳转的源地址和目标地址。并且[A,B]执行了两次,其余执行了一次,这里用hash映射在一张map中。
接下来代码具体讲讲。
之前在__afl_maybe_log
后面还有_afl_store
这个函数
.text:0000000000000960 __afl_store: ; CODE XREF: __afl_maybe_log+4F↓j
.text:0000000000000960 ; __afl_maybe_log+309↓j
.text:0000000000000960 xor rcx, cs:__afl_prev_loc
.text:0000000000000967 xor cs:__afl_prev_loc, rcx
.text:000000000000096E shr cs:__afl_prev_loc, 1
.text:0000000000000975 inc byte ptr [rdx+rcx]
对应的伪代码。COMPILE_TIME_RANDOM
就是add_instrumentation
中fprintf
中R(MAP_SIZE)
,也是在执行call __afl_maybe_log
汇编前rcx
中保存的随机数,这个随机数代表分支
cur_location = <COMPILE_TIME_RANDOM>; //随机数当前分支
shared_mem[cur_location ^ prev_location]++; //前一分支和当前分支锁表示的随机数异或表示二元tuple映射map
prev_location = cur_location >> 1; //将当前分支再记录
为什么当前分支最后需要向右移一位?比如A->A
或者A->B->A
这种不右移异或为0
并且共享内存的MAP_SIZE=64K
碰撞概率缩小很多。下面是官方给的
Branch cnt | Colliding tuples | Example targets
------------+------------------+-----------------
1,000 | 0.75% | giflib, lzo
2,000 | 1.5% | zlib, tar, xz
5,000 | 3.5% | libpng, libwebp
10,000 | 7% | libxml
20,000 | 14% | sqlite
50,000 | 30% | -
分支信息处理
共享内存还有个变量trace_bits
来记录分支执行次数
classify_counts((u32*)trace_bits);
fuzzer主要将每个分支处理次数归入下面这个表中
static const u8 count_class_lookup8[256] = {
[0] = 0,
[1] = 1,
[2] = 2,
[3] = 4,
[4 ... 7] = 8,
[8 ... 15] = 16,
[16 ... 31] = 32,
[32 ... 127] = 64,
[128 ... 255] = 128
};
比如执行了4-7次的其计数为8,最后用一个hash还判断新测试用例分支数增加没有
u32 cksum = hash32(trace_bits, MAP_SIZE, HASH_CONST);
参考链接
https://paper.seebug.org/496/
http://lcamtuf.coredump.cx/afl/technical_details.txt
https://www.inforsec.org/wp/?p=2678
https://lcamtuf.blogspot.com/2014/10/fuzzing-binaries-without-execve.html
