"Don't call us, we'll call you", Hollywood principle
Dependency Injection (DI) involves passing (injecting) one or more dependencies (or services) to a dependent object (or client) which become part of the client’s state. It is like the Strategy Pattern, except the strategy is set once, at construction. DI enables loosely coupled designs, which are easier to maintain and test.
```cpp No Dependency injection | Dependency Injection ----------------------------------------|-------------------------------------------- class coffee_maker { | class coffee_maker { public: | public: void brew() { | coffee_maker(shared_ptr heater heater->on(); | , unique_ptr pump) pump->pump(); | : heater(heater), pump(move(pump)) clog << "coffee"! << endl; | { } heater->off(); | } | void brew() { | heater->on(); private: | pump->pump(); shared_ptr heater = | clog << "coffee!" << endl; make_shared(); | heater->off(); | } unique_ptr pump = | make_unique(heater); | private: }; | shared_ptr heater; | unique_ptr pump; | }; | ```"Let's make some coffee!"
Why Dependency Injection?
- DI provides loosely coupled code (separation of business logic and object creation)
- DI provides easier to maintain code (different objects might be easily injected)
- DI provides easier to test code (fakes objects might be injected)
Why Dependency Injection Framework?
- To avoid maintaining boilerplate code | with dependency injection framework below examples are working OUT OF THE BOX, no changes required!
auto electricity = make_shared<Electricity>();
auto grinder = make_shared<Grinder>(electricity);
auto heater = make_shared<Heater>(electricity);
auto pump = make_unique<Pump>(heater, electricity);
auto coffeMaker = make_unique<CoffeMaker>(grinder, pump, heater);
* Scenario 1: Adding `logger` dependency
```cpp
auto logger = make_unique<Logger>();
auto electricity = make_shared<Electricity>(logger);
auto grinder = make_shared<Grinder>(logger, electricity);
auto heater = make_shared<Heater>(logger, electricity);
auto pump = make_unique<Pump>(logger, heater, electricity);
auto coffeMaker = make_unique<CoffeMaker>(logger, grinder, pump, heater);
```
* Scenario 2: Change coffee maker constructor
```cpp
CoffeeMaker(shared_ptr<Grinder>, unique_ptr<Electricity>, unique_ptr<Pump>, shared_ptr<Heater>);
...
auto coffeMaker = make_unique<CoffeMaker>(logger, electricity, grinder, pump, heater);
```
* Scenario 3: Change dependencies when order is important
```cpp
```
- To have better control of what and how is created
- Example 1: Disallow raw pointers
- Example 2: Show objection creation graph
Why Boost.DI?
- Boost.DI has none or minimal run-time overhead - Run-time performance
- Boost.DI compiles fast - Compile-time performance
- Boost.DI gives short diagnostic messages - Diagnostic messages
Boost.DI is not intrusive
Manual Dependency Injection | Boost.DI (same as manual di)
----------------------------------------|-----------------------------------------
coffee_maker(shared_ptr<iheater> heater | coffee_maker(shared_ptr<iheater> heater
, unique_ptr<ipump> pump); | , unique_ptr<ipump> pump);
Boost.DI reduces boilerplate code
Manual Dependency Injection | Boost.DI
----------------------------------------|-----------------------------------------
int main() { | int main() {
// has to be before pump | auto injector = di::make_injector(
auto heater = shared_ptr<iheater>{ | di::bind<ipump, heat_pump>
make_shared<electric_heater>() | , di::bind<iheater, electric_heater>
}; | );
|
// has to be after heater | auto cm = injector.create<coffee_maker>();
auto pump = unique_ptr<ipump>{ | cm.brew();
make_unique<heat_pump>(heater) | }
}; |
|
coffee_maker cm{heater, move(pump)}; |
cm.brew(); |
} |
Manual Dependency Injection | Boost.DI (only 1 new binding)
----------------------------------------|-----------------------------------------
int main() { | int main() {
// has to be before pump | auto injector = di::make_injector(
auto heater = shared_ptr<iheater>{ | di::bind<ipump, heat_pump>
make_shared<electric_heater>() | , di::bind<iheater, electric_heater>
}; | , di::bind<igrinder, grinder> // new
| );
// has to be before pump |
// and after heater | auto cm = injector.create<coffee_maker>();
auto grinder = unique_ptr<igrinder>{ | cm.brew();
make_unique<grinder>(heater) | }
}; |
|
// has to be after |
// heater and grinder |
auto pump = unique_ptr<ipump>{ |
make_unique<heat_pump>( |
heater, grinder |
) |
}; |
|
coffee_maker cm{heater, move(pump)}; |
cm.brew(); |
} |
Manual Dependency Injection | Boost.DI (no changes!)
----------------------------------------|-----------------------------------------
int main() { |
// has to be before pump |
auto heater = shared_ptr<iheater>{ |
make_shared<electric_heater>() |
}; |
|
// has to be after |
// heater and grinder |
auto pump = unique_ptr<ipump>{ |
make_unique<heat_pump>( |
heater | ✔
) |
}; |
|
// has to be before pump |
// and after heater |
auto grinder = unique_ptr<igrinder>{ |
make_unique<grinder>(heater, pump) |
}; |
|
coffee_maker cm{heater, move(pump)}; |
cm.brew(); |
} |
Manual Dependency Injection | Boost.DI (no changes!)
----------------------------------------|-----------------------------------------
int main() { |
... |
auto grinder = unique_ptr<igrinder>{ | ✔
make_unique<grinder>(pump, heater) |
}; |
... |
} |
Boost.DI reduces testing effort
Manual Dependency Injection | Boost.DI
----------------------------------------|--------------------------------------------
auto heater_mock = create_heater_mock{};| auto injector = di::make_injector<mocks_provider>();
auto pump_mock = create_pump_mock{}; | auto cm = injector.create<coffee_maker>();
coffee_maker cm{heater_mock, pump_mock};| expect_call(&iheater::on);
expect_call(&ipump::pump); | expect_call(&ipump::pump);
expect_call(&iheater::off); | expect_call(&iheater::off);
cm.brew(); | cm.brew();
Boost.DI gives better control of what and how is created
Manual Dependency Injection | Boost.DI
----------------------------------------|--------------------------------------------
| class allow_only_smart_ptrs : public di::config {
| public:
| auto policies() const noexcept {
| return di::make_policies(
| constructible(
| is_smart_ptr<di::policies::_>{}
? | );
| }
| };
|
| auto injector = di::make_injector();
| injector.create<int>(); // compile error
| injector.create<unique_ptr<int>>(); // okay

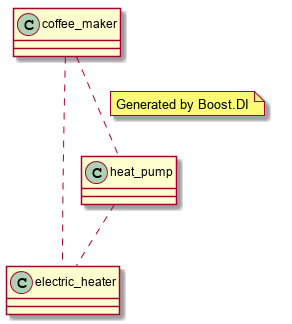

Boost.DI gives better understanding about objects hierarchy
Manual Dependency Injection | Boost.DI
----------------------------------------|--------------------------------------------
? | injector = di::make_injector<types_dumper>();
| auto cm = injector.create<coffee_maker>();
----------------------------------------|--------------------------------------------
| (coffee_maker)
| (shared_ptr<iheater> -> electric_heater)
? | (unique_ptr<ipump> -> heat_pump)
| (shared_ptr<iheater> -> electric_heater)
|
How To Start?
- Get C++14 compliant compiler (Clang-3.4+, GCC-5.1+, Visual Studio 2015*+) with STL (memory, type_traits headers) / Boost is not required
- Read Quick User Guide
- Read Tutorial
- Read Documentation
* - limited support
To get started the only file you need is
di.hpp
:
https://raw.githubusercontent.com/krzysztof-jusiak/di/cpp14/include/boost/di.hpp
// main.cpp
#include "di.hpp"
int main() { }
$CXX -std=c++1y -I. main.cpp
To get and test Boost.DI library:
git clone https://github.com/krzysztof-jusiak/di.git
cd build && cmake ..
make all test
Quick User Guide | Examples
- Injector | Bindings | Injections | Annotations | Scopes | Modules | Providers | Policies
- Run-time performance | Compile-time performance
- Diagnostic messages | Configuration
Let's assume all examples below include
boost/di.hpp
header and definedi
namespace alias.
#include <boost/di.hpp>
namespace di = boost::di;
//
struct i1 { virtual ~i1() = default; virtual void dummy1() = 0; };
struct i2 { virtual ~i2() = default; virtual void dummy2() = 0; };
struct impl1 : i1 { void dummy1() override { } };
struct impl2 : i2 { void dummy2() override { } };
struct impl : i1, i2 { void dummy1() override { } void dummy2() override { } };
Create empty injector | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector(); | assert(0 == injector.create<int>());
Bind interface to implementation | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | auto object = injector.create<unique_ptr<i1>>();
di::bind<i1, impl1> | assert(dynamic_cast<impl1*>(object.get()));
); |
Bind different interfaces to one | Test
implementation |
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | auto object1 = injector.create<shared_ptr<i1>>();
di::bind<di::any_of<i1, i2>, impl> | auto object2 = injector.create<shared_ptr<i2>>();
); | assert(dynamic_cast<impl*>(object1.get()));
| assert(dynamic_cast<impl*>(object2.get()));
Bind type to compile time value | Test
----------------------------------------|-----------------------------------------
template<int N> using int_ = | assert(42 == injector.create<int>());
integral_constant<int, N>; |
|
auto injector = di::make_injector( |
di::bind<int, int_<42>> |
); |
Bind type to value (see external scope) | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | assert(42 == injector.create<int>());
di::bind<int>.to(42) |
); |
Cross platform `bind` (Clang/GCC/MSVC) | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | auto object = injector.create<unique_ptr<i1>>();
di::bind<i1, impl1>() // brackets | assert(dynamic_cast<impl1*>(object.get()));
// MSVC 2015 doesnt support variable|
// templates |
); |
Direct constructor injection | Test
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
c(int a, double d) : a(a), d(d) { } | assert(42 == object.a);
| assert(87.0 == object.d);
int a = 0; |
double d = 0.0; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Aggregate constructor injection | Test
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
int a = 0; | assert(42 == object.a);
double d = 0.0; | assert(87.0 == object.d);
}; |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Direct constructor injection with many | Test
constructors (longest parameters list |
constructor will be chosen) |
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
c(); | assert(42 == object.a);
c(int a) : a(a) { } | assert(87.0 == object.d);
c(int a, double d) : a(a), d(d) { } |
|
int a = 0; |
double d = 0.0; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Direct constructor injection with | Test
ambiguous constructors (BOOST_DI_INJECT)|
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
c(double d, int a) : a(a), d(d) { } | assert(42 == object.a);
BOOST_DI_INJECT(c, int a, double d) | assert(87.0 == object.d);
: a(a), d(d) { } |
|
int a = 0; |
double d = 0.0; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Direct constructor injection with | Test
ambiguous constructors |
(BOOST_DI_INJECT_TRAITS) |
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
BOOST_DI_INJECT_TRAITS(int, double);| assert(42 == object.a);
c(double d, int a) : a(a), d(d) { } | assert(87.0 == object.d);
c(int a, double d) : a(a), d(d) { } |
|
int a = 0; |
double d = 0.0; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Direct constructor injection with | Test
ambiguous constructors |
(di::ctor_traits) |
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
c(double d, int a) : a(a), d(d) { } | assert(42 == object.a);
c(int a, double d) : a(a), d(d) { } | assert(87.0 == object.d);
|
int a = 0; |
double d = 0.0; |
}; |
|
namespace boost { namespace di { |
template<> |
struct ctor_traits<c> { |
BOOST_DI_INJECT_TRAITS(int, double);|
}; |
}} // boost::di |
|
auto injector = di::make_injector( |
di::bind<int>.to(42) |
, di::bind<double>.to(87.0) |
); |
Annotated constructor injection | Test
----------------------------------------|-----------------------------------------
auto int1 = []{}; | auto object = injector.create<c>();
auto int2 = []{}; | assert(42 == object.a);
| assert(87 == object.b);
struct c { |
BOOST_DI_INJECT(c |
, (named = int1) int a |
, (named = int2) int b) |
: a(a), b(b) |
{ } |
|
int a = 0; |
int b = 0; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.named(int1).to(42) |
, di::bind<int>.named(int2).to(87) |
); |
Annotated constructor injection with | Test
the same names for different parameters |
----------------------------------------|-----------------------------------------
auto n1 = []{}; | auto object = injector.create<c>();
auto n2 = []{}; | assert(42 == object.i1);
| assert(42 == object.i2);
struct c { | assert(87 == object.i3);
BOOST_DI_INJECT(c | assert(0 == object.i4);
, (named = n1) int a | assert("str" == c.s);
, (named = n1) int b |
, (named = n2) int c |
, int d |
, (named = n1) string s) |
: i1(i1), i2(i2), i3(i3), i4(i4), s(s)|
{ } |
|
int i1 = 0; |
int i2 = 0; |
int i3 = 0; |
int i4 = 0; |
string s; |
}; |
|
auto injector = di::make_injector( |
di::bind<int>.named(n1).to(42) |
, di::bind<int>.named(n2).to(87) |
, di::bind<string>.named(n1).to("str")|
); |
Annotated constructor injection with | Test
separate constructor definition |
----------------------------------------|-----------------------------------------
auto int1 = []{}; | auto object = injector.create<c>();
auto int2 = []{}; | assert(42 == object.a);
| assert(87 == object.b);
struct c { |
BOOST_DI_INJECT(c |
, (named = int1) int a |
, (named = int2) int b); |
|
int a = 0; |
int b = 0; |
}; |
|
c::c(int a, int b) : a(a), b(b) { } |
|
auto injector = di::make_injector( |
di::bind<int>.named(int1).to(42) |
, di::bind<int>.named(int2).to(87) |
); |
Annotated constructor injection with | Test
di::ctor_traits |
----------------------------------------|-----------------------------------------
auto int1 = []{}; | auto object = injector.create<c>();
auto int2 = []{}; | assert(42 == object.a);
| assert(87 == object.b);
struct c { |
c(int a, int b) : a(a), b(b) { } |
|
int a = 0; |
int b = 0; |
}; |
|
namespace boost { namespace di { |
template<> |
struct ctor_traits<c> { |
BOOST_DI_INJECT_TRAITS( |
(named = int1) int |
, (named = int2) int); |
}; |
}} // boost::di |
|
auto injector = di::make_injector( |
di::bind<int>.named(int1).to(42) |
, di::bind<int>.named(int2).to(87) |
); |
Deduce scope (default) | Test
----------------------------------------|-----------------------------------------
struct c { | auto object1 = injector.create<unique_ptr<c>>();
shared_ptr<i1> sp; /*singleton*/ | auto object2 = injector.create<unique_ptr<c>>();
unique_ptr<i2> up; /*unique*/ | assert(object1->sp == object2->sp);
int& i; /*singleton*/ | assert(object1->up != object2->up);
double d; /*unique*/ | assert(42 == object1->i);
}; | assert(&i == &object1->i;
| assert(42 == object2->i);
auto i = 42; | assert(&i == &object2->i);
| assert(87.0 == object1->d);
auto injector = di::make_injector( | assert(87.0 == object2->d);
di::bind<i1, impl1> |
, di::bind<i2, impl2> |
, di::bind<int>.to(i) |
, di::bind<double>.to(87.0) |
); |
Type | Deduced scope |
---|---|
T | unique |
T& | singleton |
const T& | unique (temporary)/singleton |
T* | unique (ownership transfer) |
const T* | unique (ownership transfer) |
T&& | unique |
unique_ptr | unique |
shared_ptr | singleton |
weak_ptr | singleton |
Unique scope | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | assert(injector.create<shared_ptr<i1>>()
di::bind<i1, impl1>.in(di::unique) | !=
); | injector.create<shared_ptr<i1>>()
| );
Shared scope (shared per one thread) | Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | assert(injector.create<shared_ptr<i1>>()
di::bind<i1, impl1>.in(di::shared) | ==
); | injector.create<shared_ptr<i1>>()
| );
Singleton scope (shared between threads)| Test
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | assert(injector.create<shared_ptr<i1>>()
di::bind<i1, impl1>.in(di::singleton)| ==
); | injector.create<shared_ptr<i1>>()
| );
Session scope | Test
----------------------------------------|-----------------------------------------
auto my_session = []{}; | assert(nullptr == injector.create<shared_ptr<i1>>());
|
auto injector = di::make_injector( | injector.call(di::session_entry(my_session));
di::bind<i1, impl1>.in( |
di::session(my_session) | assert(injector.create<shared_ptr<i1>>()
) | ==
); | injector.create<shared_ptr<i1>>()
| );
|
| injector.call(di::session_exit(my_session));
|
| assert(nullptr == injector.create<shared_ptr<i1>>());
External scope | Test
----------------------------------------|-----------------------------------------
auto l = 42l; | assert(42 == injector.create<int>());
auto b = false; | assert(injector.create<shared_ptr<i1>>()
| ==
auto injector = di::make_injector( | injector.create<shared_ptr<i1>>()
di::bind<int>.to(0) | );
, di::bind<int>.to(42) [di::override] | assert(l == injector.create<long&>());
, di::bind<i1>.to(make_shared<impl>()) | assert(&l == &injector.create<long&>());
, di::bind<long>.to(l) | assert(87 == injector.create<short>());
, di::bind<short>.to([]{return 87;}) | {
, di::bind<i2>.to( | auto object = injector.create<shared_ptr<i2>>();
[&](const auto& injector) | assert(nullptr == object);
-> shared_ptr<i2> { | }
if (b) { | {
return injector.template | b = true;
create< | auto object = injector.create<shared_ptr<i2>>();
shared_ptr<impl2>>(); | assert(dynamic_cast<impl2*>(object.get()));
} | }
return nullptr; |
} |
) |
); |
Custom scope | Test
----------------------------------------|-----------------------------------------
struct custom_scope { | assert(injector.create<shared_ptr<i1>>()
template<class TExpected, class> | !=
struct scope { | injector.create<shared_ptr<i1>>()
template<class T, class TProvider> | );
auto create(const TProvider& pr) { |
return |
shared_ptr<TExpected>{pr.get()};|
} |
}; |
}; |
|
auto injector = di::make_injector( |
di::bind<i1, impl1>.in(custom_scope{})|
); |
Type/Scope | unique | shared | singleton | session | external |
---|---|---|---|---|---|
T | ✔ | - | - | - | ✔ |
T& | - | ✔ | ✔ | ✔ | ✔ |
const T& | ✔ (temporary) | - | - | - | ✔ |
T* (transfer ownership) | ✔ | - | - | - | ✔ |
const T* | ✔ | - | - | - | ✔ |
T&& | ✔ | - | - | - | - |
unique_ptr | ✔ | - | - | - | ✔ |
shared_ptr | ✔ | ✔ | ✔ | ✔ | ✔ |
weak_ptr | - | ✔ | ✔ | ✔ | ✔ |
Module | Test
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<unique_ptr<c>>();
c(unique_ptr<i1> i1 | assert(dynamic_cast<impl1*>(object->i1.get()));
, unique_ptr<i2> i2 | assert(dynamic_cast<impl2*>(object->i2.get()));
, int i) : i1(move(i1)) | assert(42 == object->i);
, i2(move(i2)), i(i) |
{ } | auto up1 = injector.create<unique_ptr<i1>>();
| assert(dynamic_cast<impl1*>(up1.get()));
unique_ptr<i1> i1; |
unique_ptr<i2> i2; | auto up2 = injector.create<unique_ptr<i2>>();
int i = 0; | assert(dynamic_cast<impl2*>(up2.get()));
}; |
|
struct module1 { |
auto configure() const noexcept { |
return di::make_injector( |
di::bind<i1, impl1> |
, di::bind<int>.to(42) |
); |
} |
}; |
|
struct module2 { |
auto configure() const noexcept { |
return di::make_injector( |
di::bind<i2, impl2> |
); |
}; |
}; |
|
auto injector = di::make_injector( |
module1{}, module2{} |
); |
Exposed type module | Test
----------------------------------------|-----------------------------------------
struct c { | auto object = injector.create<c>();
c(shared_ptr<i1> i1 | assert(dynamic_cast<impl1*>(object.i1.get()));
, shared_ptr<i2> i2 | assert(dynamic_cast<impl2*>(object.i2.get()));
, int i) : i1(i1), i2(i2), i(i) | assert(42 == object.i);
{ } |
| // injector.create<unique_ptr<i1>>() // compile error
shared_ptr<i1> i1; | // injector.create<unique_ptr<i2>>() // compile error
shared_ptr<i2> i2; |
int i = 0; |
}; |
|
struct module { |
di::injector<c> configure() |
const noexcept; |
|
int i = 0; |
}; |
|
di::injector<c> // expose c |
module::configure() const noexcept { |
return di::make_injector( |
di::bind<i1, impl1> |
, di::bind<i2, impl2> |
, di::bind<int>.to(i) |
); |
} |
|
auto injector = di::make_injector( |
module{42} |
); |
Exposed many types module | Test
----------------------------------------|-----------------------------------------
struct module { | auto up1 = injector.create<unique_ptr<i1>>();
di::injector<i1, i2> configure() | assert(dynamic_cast<impl1*>(up1.get()));
const noexcept; |
| auto up2 = injector.create<unique_ptr<i2>>();
int i = 0; | assert(dynamic_cast<impl2*>(up2.get()));
}; |
|
di::injector<i1, i2> // expose i1, i2 |
module::configure() const noexcept { |
return di::make_injector( |
di::bind<i1, impl1> |
, di::bind<i2, impl2> |
); |
} |
|
auto injector = di::make_injector( |
module{} |
); |
Exposed type module with annotation | Test
----------------------------------------|-----------------------------------------
auto my = []{}; | auto object = injector.create<unique_ptr<c>>();
| assert(dynamic_cast<impl1*>(object->up.get()));
struct c { |
BOOST_DI_INJECT(c |
, (named = my) unique_ptr<i1> up) |
: up(up) |
{ } |
|
unique_ptr<i1> up; |
}; |
|
di::injector<i1> module = |
di::make_injector( |
di::bind<i1, impl1> |
); |
|
auto injector = di::make_injector( |
di::bind<i1>.named(my).to(module) |
); |
Heap no throw provider | Test
----------------------------------------|-----------------------------------------
class heap_no_throw { | // per injector policy
public: | auto injector = di::make_injector<my_provider>();
template< | assert(0 == injector.create<int>());
class // interface |
, class T // implementation | // global policy
, class TInit // direct()/uniform{} | #define BOOST_DI_CFG my_provider
, class TMemory // heap/stack | auto injector = di::make_injector();
, class... TArgs> | assert(0 == injector.create<int>());
auto get(const TInit& |
, const TMemory& |
, TArgs&&... args) |
const noexcept { |
return new (nothrow) |
T{forward<TArgs>(args)...}; |
} |
}; |
|
class my_provider : public di::config { |
public: |
auto provider() const noexcept { |
return heap_no_throw{}; |
} |
}; |
Define policies configuration | Test
(dump types) |
----------------------------------------|-----------------------------------------
class print_types_policy | // per injector policy
: public di::config { | auto injector = di::make_injector<print_types_policy>();
public: | injector.create<int>(); // output: int
auto policies() const noexcept { |
return di::make_policies( | // global policy
[](auto type){ | #define BOOST_DI_CFG my_policy
using T = decltype(type); | auto injector = di::make_injector();
using arg = typename T::type; | injector.create<int>(); // output: int
cout << typeid(arg).name() |
<< endl; |
} |
); |
} |
}; |
Define policies configuration | Test
(dump types extended) |
----------------------------------------|-----------------------------------------
class print_types_info_policy | // per injector policy
: public di::config { | auto injector = di::make_injector<print_types_info_policy>(
public: | di::bind<i1, impl1>
auto policies() const noexcept { | );
return di::make_policies( |
[](auto type | injector.create<unique_ptr<i1>>();
, auto dep |
, auto... ctor) { | // output:
using T = decltype(type); | 0 // ctor_size of impl1
using arg = typename T::type; | unique_ptr<i1> // ctor arg
using arg_name = | di::no_name // ctor arg name
typename T::name; | di::deduce // scope
using D = decltype(dep); | i1 // expected
using scope = | impl1 // given
typename D::scope; | no_name // dependency
using expected = |
typename D::expected; |
using given = | // global policy
typename D::given; | #define BOOST_DI_CFG my_policy
using name = | auto injector = di::make_injector(
typename D::name; | di::bind<i1, impl1>
auto ctor_s = sizeof...(ctor); | );
|
cout << ctor_s | injector.create<unique_ptr<i1>>();
<< endl |
<< typeid(arg).name() | // output:
<< endl | 0 // ctor_size of impl1
<< typeid(arg_name).name()| unique_ptr<i1> // cotr arg
<< endl | di::no_name // ctor arg name
<< typeid(scope).name() | di::deduce // scope
<< endl | i1 // expected
<< typeid(expected).name()| impl1 // given
<< endl | no_name // dependency
<< typeid(given).name() |
<< endl |
<< typeid(name).name() |
<< endl; |
; |
} |
); |
} |
}; |
|
`constructible` policy | Test
----------------------------------------|-----------------------------------------
#include <boost/di/ | // global policy
policies/constructible.hpp> | #define BOOST_DI_CFG all_must_be_bound_unless_int
| assert(0 == di::make_injector().create<int>());
class all_must_be_bound_unless_int |
: public di::config { | // di::make_injector().create<double>(); // compile error
public: | assert(42.0 == make_injector(
auto policies() const noexcept { | di::bind<double>.to(42.0)
using namespace di::policies; | ).create<double>()
using namespace | );
di::policies::operators; |
|
return di::make_policies( |
constructible( |
is_same<_, int>{} || |
is_bound<_>{}) |
); |
} |
}; |
|
- Environment
- x86_64 Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz GenuineIntel GNU/Linux
- clang++3.4 -O2 /
gdb -batch -ex 'file ./a.out' -ex 'disassemble main'
Create type wihtout bindings | Asm x86-64 (same as `return 0`)
----------------------------------------|-----------------------------------------
int main() { | xor %eax,%eax
auto injector = di::make_injector();| retq
return injector.create<int>(); |
} |
Create type with bound instance | Asm x86-64 (same as `return 42`)
----------------------------------------|-----------------------------------------
int main() { | mov $0x2a,%eax
auto injector = di::make_injector( | retq
di::bind<int>.to(42) |
); |
|
return injector.create<int>(); |
} |
Create named type | Asm x86-64 (same as `return 42`)
----------------------------------------|-----------------------------------------
auto my_int = []{}; | mov $0x2a,%eax
| retq
struct c { |
BOOST_DI_INJECT(c |
, (named = my_int) int i) |
: i(i) |
{ } |
|
int i = 0; |
}; |
|
int main() { |
auto injector = di::make_injector( |
di::bind<int>.named(my_int).to(42) |
); |
|
return injector.create<c>().i; |
} |
Create bound interface | Asm x86-64 (same as `make_unique`)
----------------------------------------|-----------------------------------------
int main() { | push %rax
auto injector = di::make_injector( | mov $0x8,%edi
di::bind<i1, impl1> | callq 0x4007b0 <_Znwm@plt>
); | movq $0x400a30,(%rax)
| mov $0x8,%esi
auto ptr = injector.create< | mov %rax,%rdi
unique_ptr<i1> | callq 0x400960 <_ZdlPvm>
>(); | mov $0x1,%eax
| pop %rdx
return ptr.get() != nullptr; | retq
} |
Create bound interface via module | Asm x86-64 (same as `make_unique`)
----------------------------------------|-----------------------------------------
struct module { | push %rax
auto configure() const noexcept { | mov $0x8,%edi
return di::make_injector( | callq 0x4007b0 <_Znwm@plt>
di::bind<i1, impl1> | movq $0x400a10,(%rax)
); | mov $0x8,%esi
} | mov %rax,%rdi
}; | callq 0x400960 <_ZdlPvm>
| mov $0x1,%eax
int main() { | pop %rdx
auto injector = di::make_injector( | retq
module{} |
); |
|
auto ptr = injector.create< |
unique_ptr<i1> |
>(); |
|
return ptr != nullptr; |
} |
Create bound interface via exposed | Asm x86-64
module | cost = virtual call due to type erasure
----------------------------------------|----------------------------------------------------------------------
struct module { | push %rbp mov (%rax),%ecx
di::injector<i1> configure() const {| push %rbx lea -0x1(%rcx),%edx
return di::make_injector( | sub $0x38,%rsp mov %edx,(%rax)
di::bind<i1, impl1> | lea 0x10(%rsp),%rdi cmp $0x1,%ecx
); | lea 0x8(%rsp),%rsi jne 0x400bcd <main+173>
} | callq 0x400bf0 <_ZN5boost2di7exposed> mov (%rbx),%rax
}; | mov 0x18(%rsp),%rdi mov %rbx,%rdi
| mov (%rdi),%rax callq *0x10(%rax)
int main() { | lea 0x30(%rsp),%rsi lea 0xc(%rbx),%rax
auto injector = di::make_injector( | callq *0x10(%rax) mov $0x0,%ecx
module{} | test %rax,%rax test %rcx,%rcx
); | setne %bpl je 0x400bb8 <main+152>
| je 0x400b57 <main+55> mov $0xffffffff,%ecx
auto ptr = injector.create< | mov (%rax),%rcx lock xadd %ecx,(%rax)
unique_ptr<i1> | mov %rax,%rdi mov %ecx,0x30(%rsp)
>(); | callq *0x8(%rcx) mov 0x30(%rsp),%ecx
| mov 0x20(%rsp),%rbx jmp 0x400bbf <main+159>
return ptr != nullptr; | test %rbx,%rbx mov (%rax),%ecx
} | je 0x400bcd <main+173> lea -0x1(%rcx),%edx
| lea 0x8(%rbx),%rax mov %edx,(%rax)
| mov $0x0,%ecx cmp $0x1,%ecx
| test %rcx,%rcx jne 0x400bcd <main+173>
| je 0x400b82 <main+98> mov (%rbx),%rax
| mov $0xffffffff,%ecx mov %rbx,%rdi
| lock xadd %ecx,(%rax) callq *0x18(%rax)
| mov %ecx,0x30(%rsp) movzbl %bpl,%eax
| mov 0x30(%rsp),%ecx add $0x38,%rsp
| jmp 0x400b89 <main+105> pop %rbx
| pop %rbp
| --> retq
- Environment
- x86_64 Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz GenuineIntel GNU/Linux
- clang++3.4 -O2
Boost.DI header | Time [s]
----------------------------------------|-----------------------------------------
#include <boost/di.hpp> | 0.165
int main() { } |
Legend:
ctor = raw constructor: c(int i, double d);
inject = inject constructor: BOOST_DI_INJECT(c, int i, double d);
all = all types exposed from module: auto configure();
exposed = one type exposed from module: di::injector<c> configure();
* 4248897537 instances created
* 132 different types
* 10 modules
* 1862039751439806464 instances created
* 200 different types
* 10 modules
* 5874638529236910091 instances created
* 310 different types
* 100 different interfaces
* 10 modules
Create interface without bound | Error message
implementation |
----------------------------------------|[clang]--------------------------------------
auto injector = di::make_injector(); | warning: 'create' is deprecated: creatable constraint not satisfied
injector.create<i*>(); | injector.create<i*>();
| ^
| note: 'create<i *, 0>' has been explicitly marked deprecated here
| T create() const {
| ^
| error: inline function 'boost::di::abstract_type<i>::is_not_bound::error' is not defined
| error(_ = "type not bound, did you forget to add: 'di::bind<interface, implementation>'?")
| ^
| note: used here
| constraint_not_satisfied{}.error();
|
|[gcc]----------------------------------------
| error: inline function ‘constexpr T* boost::di::abstract_type<T>::is_not_bound::error(boost::di::_) const [with T = i]’ used but never defined
| error(_ = "type not bound, did you forget to add: 'di::bind<interface, implementation>'?")
| ^
| error: call to ‘boost::di::core::injector<boost::di::config>::create<i*, 0>’ declared with attribute error: creatable constraint not satisfied
| injector.create<i*>();
Ambiguous binding | Error message
----------------------------------------|-----------------------------------------
auto injector = di::make_injector( | error: base class 'pair<int, no_name>'
di::bind<int>.to(42) | specified more than once as a direct
, di::bind<int>.to(87) | base class
); |
|
injector.create<int>(); |
Create not bound object with all bound | Error message
policy |
----------------------------------------|-----------------------------------------
class all_bound : public di::config { | error: static_assert failed
public: | "Type T is not allowed"
auto policies() const noexcept { |
return di::make_policies( |
constructible(is_bound<_>{}) |
); |
} |
}; |
|
auto injector = |
di::make_injector<all_bound>(); |
|
injector.create<int>(); |
Wrong annotation | Error message
(NAMED instead of named) |
----------------------------------------|-----------------------------------------
auto name = []{}; | error: use of undeclared identifier
| 'named'
struct c { |
BOOST_DI_INJECT(c |
, (NAMED = name) int) { } |
}; |
|
di::make_injector().create<c>(); |
Macro | Description
----------------------------------------|-----------------------------------------
BOOST_DI_CFG_CTOR_LIMIT_SIZE | Limits number of allowed consturctor
| parameters [0-10, default=10]
----------------------------------------|-----------------------------------------
BOOST_DI_CFG | Global configuration allows to customize
| provider and policies
----------------------------------------|-----------------------------------------
BOOST_DI_INJECTOR | Named used internally by Boost.DI
| to define constructor traits
| [default=boost_di_injector__]
Similar libraries
Disclaimer Boost.DI is not an official Boost library.
