看看这个demo

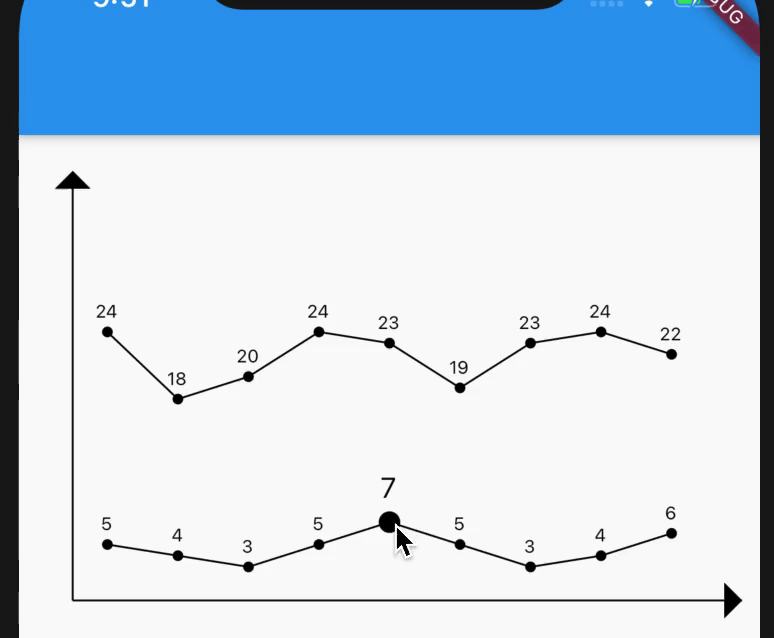

运行这个例子看看效果,这也正好是我要分享的实战中的一个例子
import 'dart:ui';
import 'package:flutter/material.dart';
class HomePage extends StatefulWidget {
@override
_HomePageState createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
GlobalKey globalKey = GlobalKey();
Offset clickOffset = null;
@override
void initState() {
super.initState();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(),
body: Container(
margin: EdgeInsets.only(left: 10, top: 10, right: 10),
child: GestureDetector(
onTapDown: (down) {
RenderBox renderBox = globalKey.currentContext.findRenderObject();
final Offset localOffset =
renderBox.globalToLocal(down.globalPosition);
setState(() {
clickOffset = Offset(localOffset.dx - 10, localOffset.dy - 10);
});
},
child: CustomPaint(
key: globalKey,
size: Size(MediaQuery.of(context).size.width - 20, 300),
painter: WeatherPainter(clickOffset: clickOffset),
),
),
),
);
}
}
class WeatherPainter extends CustomPainter {
Offset clickOffset = null;
WeatherPainter({this.clickOffset});
List<Weather> weathers = [
Weather(low_tempture: 5, high_tempture: 24),
Weather(low_tempture: 4, high_tempture: 18),
Weather(low_tempture: 3, high_tempture: 20),
Weather(low_tempture: 5, high_tempture: 24),
Weather(low_tempture: 7, high_tempture: 23),
Weather(low_tempture: 5, high_tempture: 19),
Weather(low_tempture: 3, high_tempture: 23),
Weather(low_tempture: 4, high_tempture: 24),
Weather(low_tempture: 6, high_tempture: 22),
];
@override
void paint(Canvas canvas, Size size) {
//绘制y轴坐标系
double offset = 20;
double height = 250;
double high_tempture = 40;
canvas.drawLine(
Offset(offset, offset),
Offset(offset, height),
Paint()
..color = Colors.black
..style = PaintingStyle.stroke
..strokeWidth = 1);
//绘制x轴坐标系
canvas.drawLine(
Offset(offset, height),
Offset(size.width, height),
Paint()
..color = Colors.black
..style = PaintingStyle.stroke
..strokeWidth = 1);
//绘制三角形
Path yPath = Path();
yPath.moveTo(offset, offset / 2);
yPath.lineTo(offset + offset / 2, offset);
yPath.lineTo(offset / 2, offset);
yPath.close();
canvas.drawPath(
yPath,
Paint()
..color = Colors.black
..style = PaintingStyle.fill);
//绘制三角形
Path xPath = Path();
xPath.moveTo(size.width, height);
xPath.lineTo(size.width - offset / 2, height + offset / 2);
xPath.lineTo(size.width - offset / 2, height - offset / 2);
xPath.close();
canvas.drawPath(
xPath,
Paint()
..color = Colors.black
..style = PaintingStyle.fill);
Path path_low = Path();
Path path_high = Path();
for (int i = 0; i < weathers.length; i++) {
Weather weather = weathers[i];
double x_low = size.width * 0.9 / weathers.length * (i + 1);
double x_high = size.width * 0.9 / weathers.length * (i + 1);
double y_low = height - weather.low_tempture * (height / high_tempture);
double y_high = height - weather.high_tempture * (height / high_tempture);
if (i == 0) {
path_low.moveTo(x_low, y_low);
path_high.moveTo(x_high, y_high);
} else {
path_low.lineTo(x_low, y_low);
path_high.lineTo(x_high, y_high);
}
canvas.drawCircle(Offset(x_low, y_low), 3, Paint()..color = Colors.black);
canvas.drawCircle(
Offset(x_high, y_high), 3, Paint()..color = Colors.black);
//点击事件命中测试
bool low_hited = false;
bool high_hited = false;
if (clickOffset != null) {
double dx = clickOffset.dx;
double dy = clickOffset.dy;
if ((dx - x_low).abs() < 15 && (dy - y_low).abs() < 15) {
low_hited = true;
canvas.drawCircle(
Offset(x_low, y_low), 6, Paint()..color = Colors.black);
} else {
low_hited = false;
}
if ((dx - x_high).abs() < 15 && (dy - y_high).abs() < 15) {
high_hited = true;
canvas.drawCircle(
Offset(x_high, y_high), 6, Paint()..color = Colors.black);
} else {
high_hited = false;
}
}
//绘制文字
var paint = TextPainter(
text: TextSpan(
text: weather.low_tempture.toString(),
style: TextStyle(
color: Colors.black,
fontSize: low_hited ? 16 : 10,
)),
textAlign: TextAlign.left,
textDirection: TextDirection.ltr,
);
paint.layout();
Offset low_offset = Offset(
x_low - paint.width / 2, y_low - paint.height - paint.height / 2);
paint.paint(canvas, low_offset);
var paint_high = TextPainter(
text: TextSpan(
text: weather.high_tempture.toString(),
style: TextStyle(
color: Colors.black,
fontSize: high_hited ? 16 : 10,
)),
textAlign: TextAlign.left,
textDirection: TextDirection.ltr,
);
paint_high.layout();
Offset high_offset = Offset(x_high - paint_high.width / 2,
y_high - paint_high.height - paint_high.height / 2);
paint_high.paint(canvas, high_offset);
}
canvas.drawPath(
path_low,
Paint()
..color = Colors.black
..style = PaintingStyle.stroke
..strokeWidth = 1);
canvas.drawPath(
path_high,
Paint()
..color = Colors.black
..style = PaintingStyle.stroke
..strokeWidth = 1);
}
@override
bool shouldRepaint(CustomPainter oldDelegate) {
return oldDelegate != this;
}
}
class Weather {
int low_tempture = 0;
int high_tempture;
Weather({this.low_tempture = 0, this.high_tempture = 40});
}
