A repo to demonstrate the git workflow

In this tutorial we are going to demonstrate one simple git workflow that can be used in moderately large projects from software dev teams (for large projects I still advocate gerrit).

The working example will be the implementation of a toy calculator in Python.

More concretely we are going to demonstrate:

1. Branching, Creating and merging a PR
2. Rebasing and Merge conflict resolution

Note that in a previous tutorial I explicitly recommended never to do git push -f. Well, almost never.

In large projects direct push to master is a bad idea. Everybody knows that, even the stackexchange people :).

So everyone should incorporate branching in their dev workflow. In most cases you will create a new branch for every issue in your issue tracker. Let's see how this is done in practice:

git clone https://github.com/georgepar/git-tutorial
git checkout -b TASK-1-initial-calc
# Edit run.py
git add run.py
git commit -sv -m "Add initial runner"
# Edit requirements.txt
git add requirements.txt
git commit -sv -m "Add some dummy dependencies"
git push -u origin TASK-1-initial-calc

Now we developed an initial version of our calculator in a new branch.

• run.py

import sys


def main():
    # The operation we want to perform will be passed
    # as a string in the positional command line args
    # Example: python run.py '1 + 2'
    args = sys.argv[1].strip().split()
    x, op, y = args[0], args[1], args[2]
    print(x, op, y)


if __name__ == '__main__':
    main()

• requirements.txt

numpy==1.7.1
requests==2.7.0

We can go into our VCS UI (in this case github) and create a pull request. When this PR passes the CI tests and the reviews it can be merged from the UI.

I have advocated that it's the author's responsibility to maintain his PRs and keep them up to date.

git rebase changes the parent of a revision to a designated branch. Using git rebase to rebase our branches / PRs on master allows to always keep the PRs up to date and ready to merge.

In this case let's assume that we have 2 tasks, TASK-2-implement-addition and TASK-3-implement-multiplication. We assign them to Alice and Bob respectively and they start developing independently.

Alice finishes first and her PR gets merged. The new code is shown below:

import sys


def add(x, y):
    return x + y


def main():
    # The operation we want to perform will be passed
    # as a string in the positional command line args
    # Example: python run.py '1 + 2'
    args = sys.argv[1].strip().split()
    x, op, y = args[0], args[1], args[2]

    if op == '+':
        return add(x, y)


if __name__ == '__main__':
    main()

Now Bob finishes his task and his code looks like this:

• run.py

import sys


def mult(x, y):
    return float(x) * float(y)


def main():
    # The operation we want to perform will be passed
    # as a string in the positional command line args
    # Example: python run.py '1 + 2'
    args = sys.argv[1].strip().split()
    x, op, y = args[0], args[1], args[2]
    if op == '*':
        print(mult(x, y))


if __name__ == '__main__':
    main()

• requirements.txt

numpy==1.7.1
requests==2.7.0

Since Alice's code was already merged he will have to rebase his branch to the upstream code by running:

~ git checkout master
...
~ git pull
...
~ git checkout TASK-3-implement-multiplication
...
~ git rebase master
First, rewinding head to replay your work on top of it...
Applying: Implement multiplication
Using index info to reconstruct a base tree...
M	run.py
Falling back to patching base and 3-way merge...
Auto-merging run.py
CONFLICT (content): Merge conflict in run.py
error: Failed to merge in the changes.
Patch failed at 0001 Implement multiplication
The copy of the patch that failed is found in: .git/rebase-apply/patch

When you have resolved this problem, run "git rebase --continue".
If you prefer to skip this patch, run "git rebase --skip" instead.
To check out the original branch and stop rebasing, run "git rebase --abort".

We see that we have to resolve some merge conflicts. I really recommend using meld for this. This excellent stackoverflow answer says all you need to know to get started.

We can fire up meld by running:

git mergetool

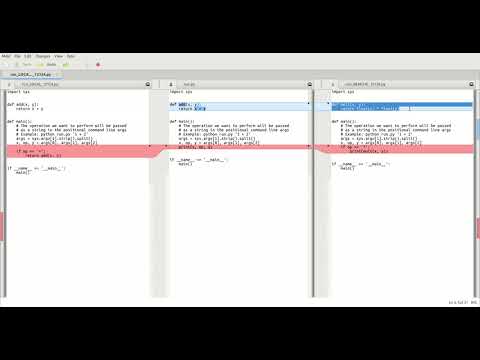

And resolve the conflicts as shown in the following video (sorry for the bad quality):

Let's take this step by step. What we did is a 3-way merge.

• On the left we can see the upstream code (master)
• On the right we can see the local branch (TASK-3-implement-multiplication)
• In the middle we can see their common ancestor which will be the final product

Resolving MCs then is just a matter of picking and choosing what we need from each branch.

Once we're finished we can run:

git rebase --continue
git push -f

And merge the PR as usual.

Now let's assume that we create a new task, TASK-4-implement-division and assign it to George. George wants to base his work on Bob's work on multiplication so at some point he branches out of TASK-3-implement-multiplication.

While he's developing Bob's PR gets merged. This problem can also be resolved with a rebase:

git checkout master
git pull
git checkout TASK-4-implement-division
git rebase master
git push -f

and the final code is:

import sys


def add(x, y):
    return x + y

def mult(x, y):
    return float(x) * float(y)

def division(x, y):
    return mult(x, 1.0 / float(y))

def main():
    # The operation we want to perform will be passed
    # as a string in the positional command line args
    # Example: python run.py '1 + 2'
    args = sys.argv[1].strip().split()
    x, op, y = args[0], args[1], args[2]
    if op == '*':
        print(mult(x, y))

    if op == '+':
        print(add(x, y))

    if op == '/':
        print(division(x, y))


if __name__ == '__main__':
    main()

NOTE Yes it has a bug. I may use it to demo git bisect in the future.

We have demonstrated how to follow a simple git development workflow by branching, creating and merging pull requests. We have demonstrated how we can always keep our PRs up to date and ready to merge by rebasing on master.

For more detailed information you can check the Git Pro book (1) which is available freely online. It's a fast and essential read for every software dev. You can do a minimal read to be able to get things done: Chapters 2, 3, 4.3, 5.2, A3 and additionally read Chapters 5 (rest), 7, 8 for more advanced concepts.

(1) Git Pro
