- Swift Package Manager Support Added
open var colorForTapView: UIColor = UIColor.black.withAlphaComponent(0.35)
open var shouldAnimateWithPan: Bool = true- XCode 10 support
- Swift 5.0 support
- Presenting a UINavigation controller distorts the frames of center panel while left panel is open and its state is front, is resolved
- Crash when right panel is nil and layout panel containers are updated is resolved
- Execute a completion closure for any state of side menus, right after the animation of changing center panelVC
- Smooth logout feature ( i.e: When user taps on logout button/cell in the side menu, you will change the center panelVC and then can set left panelVC to "nil" as you don't want the user to use side menus in login/signup stories)
- Change Left/Right menus with smooth center panelVC animations
- Create as many instances of FAPanelController with code only
- Configure its left, right and center panels as you want
- Update the Root Window Controller with any FAPanelController object
// Create FAPanelController object with out any NSCoder, Storyboards and Nib files
let rootController = FAPanelController()
// Configure the panels as you want and assign this panel controller to root controller of window.
window?.rootViewController = rootController
// You can also set window's root controller to any FAPanelController object with different FAPanelConfigurations at any time.- Right panel position (front/back) to center panel
- Dark Overlay on right panel, if right panel position is front
| back | front |
|---|---|
 |
 |
// Set the Right Panel position
let rootController: FAPanelController = window?.rootViewController as! FAPanelController
rootController.rightPanelPosition = .front
rootController.rightPanelPosition = .back
- Left panel position (front/back) to center panel
- Shadow on left panel, if left panel position is front
- FAPanel State Delegate feature
| back | front |
|---|---|
 |
 |
// Set the Left Panel position
let rootController: FAPanelController = window?.rootViewController as! FAPanelController
rootController.leftPanelPosition = .front
rootController.leftPanelPosition = .back
- Implementation with code & storyboard
- Left, right and center panel supported
- Change left, right or center panel
- Open left, right or center panel
- Supports Animations
- Multiple Panel configurations
- Supports status bar preffered style for all panels
- Flip From Left
- Flip From Right
- Flip From Top
- Flip From Bottom
- Curl Up
- Curl Down
- Cross Dissolve
- Move Up
- Move Down
- Move Left
- Move Right
- Split Horizontally
- Split Vertically
- Dump Fall
- Box Fade
// Panels width
var leftPanelWidth : CGFloat = 280 // It will override the gap percentage value
var rightPanelWidth: CGFloat = 280
var leftPanelGapPercentage : CGFloat = 0.8
var rightPanelGapPercentage: CGFloat = 0.8
// resizes all subviews as well
var resizeLeftPanel : Bool = false
var resizeRightPanel: Bool = false
// Adds push animation on side panels
var pusheSidePanels: Bool = false
// Bounce effects on panel animations
var bounceOnLeftPanelOpen : Bool = true
var bounceOnRightPanelOpen : Bool = true
var bounceOnCenterPanelOpen: Bool = true
var bounceOnLeftPanelClose : Bool = false
var bounceOnRightPanelClose : Bool = false
var bounceOnCenterPanelChange: Bool = true
var bouncePercentage : CGFloat = 0.075
var bounceDuration : CGFloat = 0.1
// Panning Gesture
var canRecognizePanGesture: Bool = true
var panFromEdge : Bool = false
var minEdgeForLeftPanel : CGFloat = 70.0
var minEdgeForRightPanel : CGFloat = 70.0
var canLeftSwipe : Bool = true
var canRightSwipe: Bool = true
// restricts panning gesture to work for top VC of Navigation/TabBar Controller
var restrictPanningToTopVC: Bool = true
// Handles the interface auto rotation of visible panel
var handleAutoRotation: Bool = true
// Applies corner radius to panels
var cornerRadius: CGFloat = 0.0
// Shadow configurations
open var shadowColor : CGColor = UIColor.black.cgColor
open var shadowOffset : CGSize = CGSize(width: 10.0, height: 0.0)
open var shadowOppacity: Float = 0.5
// Remove panels from super view when possible
var unloadRightPanel: Bool = false
var unloadLeftPanel : Bool = false
// Max animation duration for animations of side panels
var maxAnimDuration : CGFloat = 0.20
// percentage of screen's width to the centerPanel.view must move for panGesture to succeed
var minMovePercentage: CGFloat = 0.15
// Only Center Panel Change animation
var changeCenterPanelAnimated : Bool = true
var centerPanelTransitionType : FAPanelTransitionType = .crossDissolve
var centerPanelTransitionDuration: TimeInterval = 0.60CocoaPods is a dependency manager for Cocoa projects. You can install it with the following command:
$ gem install cocoapodsTo integrate FAPanel into your Xcode project using CocoaPods, specify it in your Podfile:
source 'https://github.com/CocoaPods/Specs.git'
platform :ios, '9.0'
use_frameworks!
target '<Your Target Name>' do
pod 'FAPanels'
endThen, run the following command:
$ pod installCarthage is a decentralized dependency manager that builds your dependencies and provides you with binary frameworks.
You can install Carthage with Homebrew using the following command:
$ brew update
$ brew install carthageTo integrate FAPanels into your Xcode project using Carthage, specify it in your Cartfile:
github "fahidattique55/FAPanels" >= 0.2.0
Run carthage update to build the framework and drag the built FAPanels.framework into your Xcode project.
- Set the root window as FAPanel controller as shown in below image,
- Add the following code in
AppDelegate.swiftfile,
// Load the Controllers
let mainStoryboard: UIStoryboard = UIStoryboard(name: "Main", bundle: nil)
let leftMenuVC: LeftMenuVC = mainStoryboard.instantiateViewController(withIdentifier: "LeftMenuVC") as! LeftMenuVC
let rightMenuVC: RightMenuVC = mainStoryboard.instantiateViewController(withIdentifier: "RightMenuVC") as! RightMenuVC
let centerVC: CenterVC = mainStoryboard.instantiateViewController(withIdentifier: "CenterVC1") as! CenterVC
let centerNavVC = UINavigationController(rootViewController: centerVC)
// Set the Panel controllers with just two lines of code
let rootController: FAPanelController = window?.rootViewController as! FAPanelController
rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)- All done! Run the code and see the magic.
- Don't want to set RightMenuVC then just remove the right panel code i.e,
// This is the code to set all panels
rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)
// Updated code which have only left and center panels
rootController.center(centerNavVC).left(leftMenuVC)
// Similarly, if left panel is not needed the remove the left panel code.
rootController.center(centerNavVC).right(rightMenuVC)
// In case you only want the center panel, then update code to

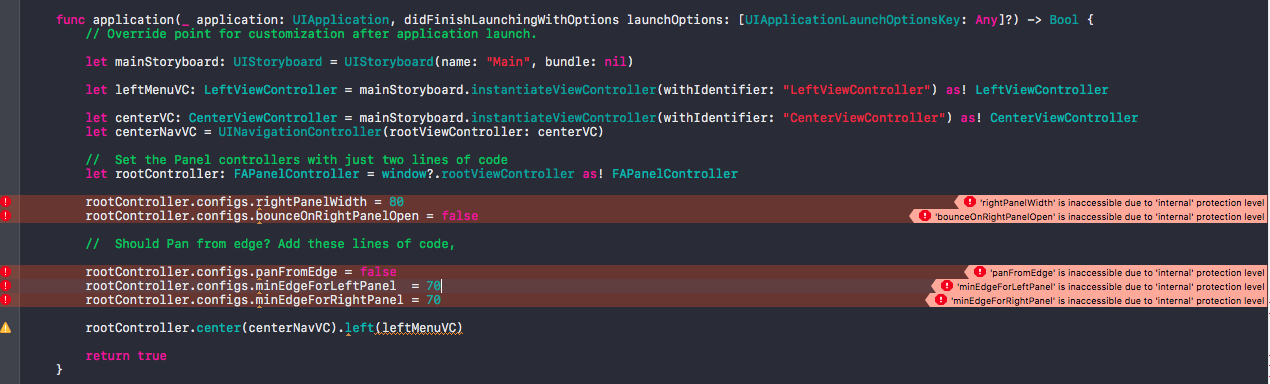

rootController.center(centerNavVC)- Configre the Panels before setting the panels
rootController.configs.rightPanelWidth = 80
rootController.configs.bounceOnRightPanelOpen = false
// Should Pan from edge? Add these lines of code,
rootController.configs.panFromEdge = false
rootController.configs.minEdgeForLeftPanel = 70
rootController.configs.minEdgeForRightPanel = 70
rootController.center(centerNavVC).left(leftMenuVC).right(rightMenuVC)
// For more configurations and their details, Please have a look into ``` FAPanelConfigurations.swift ``` file - Panel can be accessed from any view controller,
panel?.configs = FAPanelConfigurations()
- Open Left or Right panels with/without animations
panel?.openLeft(animated: true)
panel?.openRight(animated: true)
- Open/Close Panels Preview
- Change Left, Right or Center Panel from any view controller
// Change Center panel
let centerVC: UIViewController = mainStoryboard.instantiateViewController(withIdentifier: "CenterVC2")
let centerNavVC = UINavigationController(rootViewController: centerVC)
panel!.center(centerNavVC)
// Change Left panel
let leftVC: UIViewController = mainStoryboard.instantiateViewController(withIdentifier: "LeftVC")
panel!.left(leftVC)
// Remove Left panel
panel!.left(nil)
- Preview, when changing center panel from left/right panels
- Change Left, Right or Center Panel from any view controller
// Specify the transition type
panel!.configs.centerPanelTransitionType = .transitionOption // Transitions supported are mentioned in FAPanelTransitionType
// Specify the transition duration
panel!.configs.centerPanelTransitionDuration = 0.60
// Update the center panel
panel!.center(centerNavVC)
- Transitions Preview
| flipFromLeft | flipFromRight |
|---|---|
 |
 |
| flipFromTop | flipFromBottom |
|---|---|
 |
 |
| curlUp | curlDown |
|---|---|
 |
 |
| crossDissolve | moveRight |
|---|---|
 |
 |
| moveLeft | moveUp |
|---|---|
 |
 |
| moveDown | splitVertically |
|---|---|
 |
 |
| splitHorizontally | dumpFall |
|---|---|
 |
 |
| boxFade |
|---|
 |
FAPanels is licensed under the Apache License 2.0.
For more details visit http://www.apache.org/licenses/LICENSE-2.0
Fahid Attique - (https://github.com/fahidattique55)
