binaryanalysisplatform / bap-ida-python Goto Github PK
View Code? Open in Web Editor NEWintegration with IDA
License: MIT License
integration with IDA
License: MIT License
If bap fails with an error that is outputted to stderr, nothing is shown in bap output window
For example in IDA:
BAP execution string
--------------------
bap
--taint-reg=0x871C
--taint
--propagate-taint
--map-terms-with='((true) (color gray))'
--map-terms-with='((is-visited) (color white))'
--map-terms-with='((has-taints) (color red))'
--map-terms-with='((taints) (color yellow))'
--map-terms
--emit-ida-script-attr=color
--emit-ida-script-file=/tmp/ida-bap-JER5vn.py
--emit-ida-script
Output
------
IRL:
$ bap --taint-reg=0x871C --taint --propagate-taint --map-terms-with='((true) (color gray))' --map-terms-with='((is-visited) (color white))' --map-terms-with='((has-taints) (color red))' --map-terms-with='((taints) (color yellow))' --map-terms --emit-ida-script-attr=color --emit-ida-script-file=/tmp/ida-bap-JER5vn.py --emit-ida-scrip
Uncaught exception:
(Sys_error "No space left on device")
Raised by primitive operation at file "pervasives.ml", line 325, characters 19-27
Called from file "lib/bap_bundle/bap_bundle.ml", line 151, characters 8-45
Called from file "src/exn.ml", line 45, characters 8-11
Re-raised at file "src/exn.ml", line 48, characters 12-15
Called from file "lib/bap_plugins/bap_plugins.ml", line 102, characters 4-48
Called from file "lib/bap_plugins/bap_plugins.ml", line 132, characters 14-37
Called from file "list.ml", line 84, characters 24-34
Called from file "lib/bap_plugins/bap_plugins.ml", line 152, characters 6-30
Called from file "lib/bap_plugins/bap_plugins.ml", line 162, characters 10-25
Called from file "lib/bap_plugins/bap_plugins.ml", line 200, characters 24-37
Called from file "src/core_list0.ml", line 985, characters 12-16
Called from file "src/core_list0.ml", line 992, characters 31-52
Called from file "lib/bap_plugins/bap_plugins.ml", line 210, characters 14-39
Called from file "lib/bap_plugins/bap_plugins.ml", line 240, characters 4-29
Called from file "src/bap_plugin_loader.ml", line 108, characters 25-68
Called from file "src/bap_main.ml", line 222, characters 20-65
Called from file "src/bap_main.ml", line 245, characters 20-33
With bap installed from OPAM:
$ bap --version 1.3.0
Then in IDA with the plugin loaded correctly I get the following when I try to use it:
bap: unknown option '--emit-ida-script-attr'.
unknown option '--emit-ida-script-file'.
Usage: bap [OPTION]... FILE
Try 'bap --help' for more information.
bap
returns with nonzero if something is wrong, so for a better diagnostics we should capture the return code and if it failed output a big popup window
Hello,
After installing bap 1.3.0 and the newest IDA (7.0) I attempted to install bap-ida-python.1.2.0 but the conf.ida.0.1 has been unable to find where IDA has been installed and bap-ida-python install fails.
Inspecting the conf-ida-0.1 script, it has been trying to locate 'idaq64', yet the IDA no longer appears to have idaq64 (just ida64 and idat64). I edited the conf-ida to locate 'ida64' but retrying 'opam install bap-ida-python.1.2.0' seems to overwrite these changes with the previous conf-ida version.
Is there a way to install bap-ida-python.1.2.0 using opam accounting for the IDA 7.0 update?
Thanks!

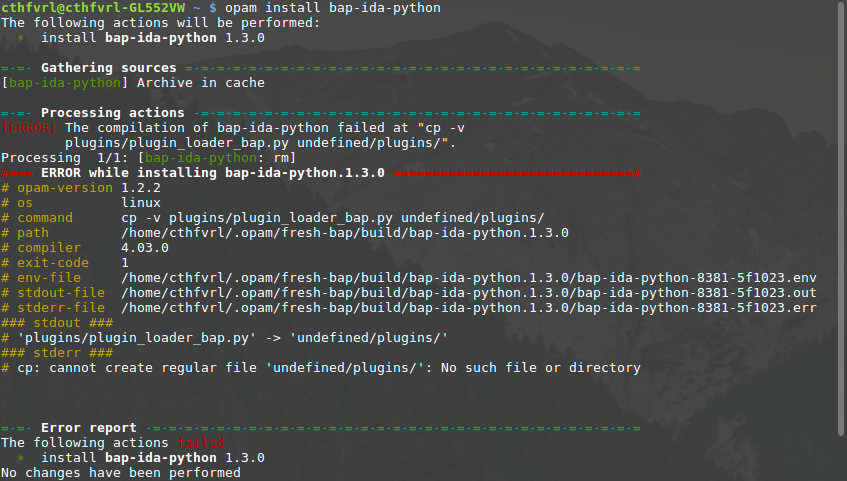

The easiest way to install is to use opam
, and most likely that all users will pursue this path, so we should mention it.
First, it doesn't find the setup.py file whitch I find it in the repo: https://github.com/jaybosamiya/bap_ida_python
Second, when I try "import bap.plugins", it returns "No module named plugins".
Currently on BAP 1.6.0, opam 2.0.3, and IDA 7.1, given the file assembly compiled with gcc -nostdlib -o foo -foo.S
:
.global _start
.text
foo:
nop
ret
main:
lea -0x98(%rsp), %rsp
mov %rdx, (%rsp)
call foo
mov (%rsp), %rdx
lea 0x98(%rsp), %rsp
ret
_start:
call main
mov $0x0, %rbx
mov $0x1, %rax
int $0x80
When we grab the BIR representation with bap -dbir foo
, we get
00000026: sub main(main_argc, main_argv, main_result)
00000028: main_argc :: in u32 = RDI
00000029: main_argv :: in out u64 = RSI
0000002a: main_result :: out u32 = RAX
0000001a:
0000001b: RSP := low:64[RSP + 0xFFFFFFFFFFFFFF68]
0000001c: mem := mem with [RSP, el]:u64 <- RDX
0000001d: RSP := RSP - 8
0000001e: mem := mem with [RSP, el]:u64 <- 0x254
0000001f: call @foo with return %00000020
00000020:
00000021: RDX := mem[RSP, el]:u64
00000022: RSP := low:64[RSP + 0x98]
00000023: v14 := mem[RSP, el]:u64
00000024: RSP := RSP + 8
00000025: return v14
as expected.
However, with the IDA backend, and running the command bap -dbir --loader=ida --rooter=ida symbolizer=ida --brancher=ida foo
, all of the registers become 32-bit:
00000045: sub main(main_argc, main_argv, main_result)
0000005c: main_argc :: in u32 = mem[ESP + 4, el]:u32
0000005d: main_argv :: in out u32 = mem[ESP + 8, el]:u32
0000005e: main_result :: out u32 = EAX
0000001d:
0000001f: EAX := low:32[EAX] - 1
00000025: ESP := low:32[low:32[ESP] + -0x98]
00000027: EAX := low:32[EAX] - 1
0000002d: mem := mem with [ESP, el]:u32 <- EDX
0000002e: ESP := ESP - 4
0000002f: mem := mem with [ESP, el]:u32 <- 0x254
00000030: call @foo with return %00000031
00000031:
00000033: EAX := low:32[EAX] - 1
00000039: EDX := mem[ESP, el]:u32
0000003b: EAX := low:32[EAX] - 1
00000041: ESP := low:32[low:32[ESP] + 0x98]
00000042: v18 := mem[ESP, el]:u32
00000043: ESP := ESP + 4
00000044: return v18
Symbols in Go binaries can contain parentheses, that will break the format. They should be delimited with quotes to prevent this.
Many attributes in bap has a unit type and denote a boolean property. For example, the dead
attribute:
// (BAP (dead ("()")))
it would be nice to have a special handling for unit attributes. I suggest that unit value is just not printed at all, e.g.,
// (BAP (dead)
