Comments (12)
mblondel
commented on May 5, 2024
This issue is related to #61. We can't use projection_polyhedron with vmap yet because it is based on jaxopt.QuadraticProgramming, which currently relies on cvxpy when there are inequality constraints. The issue will be resolved once we ship our own pure-JAX QP solvers.
from jaxopt.
jecampagne
commented on May 5, 2024
Ok for vmapnow, I experience another problem but it may be related to the way I have coded.
I have tried to make the following:
3 lines forming a triangle with A & b matrix/vector
y_0 + y_1 = 1
y_1 = 1
-y_0+y_1 = _1
and with G & h
y_0 >0 & y_1 >0
def myproj3(x):
A = jnp.array([[1.0, 1.0],[0.0,1.0],[-1.0,1.0]])
b = jnp.array([1.0,1.0,-1.0])
G = jnp.array([[-1.0, 0.0], [0.0, -1.0]])
h = jnp.array([0.0, 0.0])
x = projection_polyhedron(x,hyperparams = (A, b, G, h))
return xbut
myproj3(jnp.array([0.,0.]))
get the error
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
/tmp/ipykernel_24565/1376122935.py in <module>
----> 1 myproj3(jnp.array([0.,0.]))
/tmp/ipykernel_24565/3808040114.py in myproj3(x)
4 G = jnp.array([[-1.0, 0.0], [0.0, -1.0]])
5 h = jnp.array([0.0, 0.0])
----> 6 x = projection_polyhedron(x,hyperparams = (A, b, G, h))
7 return x
/sps/lsst/users/campagne/anaconda3/envs/jaxOptim/lib/python3.8/site-packages/jaxopt/_src/projection.py in projection_polyhedron(x, hyperparams)
299 I = jnp.eye(len(x))
300 hyperparams = dict(params_obj=(I, -x), params_eq=(A, b), params_ineq=(G, h))
--> 301 return qp.run(**hyperparams).params[0]
302
303
/sps/lsst/users/campagne/anaconda3/envs/jaxOptim/lib/python3.8/site-packages/jaxopt/_src/implicit_diff.py in wrapped_solver_fun(*args, **kwargs)
238 args, kwargs = _signature_bind(solver_fun_signature, *args, **kwargs)
239 keys, vals = list(kwargs.keys()), list(kwargs.values())
--> 240 return make_custom_vjp_solver_fun(solver_fun, keys)(*args, *vals)
241
242 return wrapped_solver_fun
[... skipping hidden 5 frame]
/lib/python3.8/site-packages/jaxopt/_src/implicit_diff.py in solver_fun_flat(*flat_args)
230 def solver_fun_flat(*flat_args):
231 args, kwargs = _extract_kwargs(kwarg_keys, flat_args)
--> 232 return solver_fun(*args, **kwargs)
233
234 solver_fun_flat.defvjp(solver_fun_fwd, solver_fun_bwd)
/lib/python3.8/site-packages/jaxopt/_src/quadratic_prog.py in run(self, init_params, params_obj, params_eq, params_ineq)
208 self.maxiter, tol=self.tol))
209 else:
--> 210 sol = base.KKTSolution(*_solve_constrained_qp_cvxpy(params_obj,
211 params_eq,
212 params_ineq))
/lib/python3.8/site-packages/jaxopt/_src/quadratic_prog.py in _solve_constrained_qp_cvxpy(params_obj, params_eq, params_ineq)
110 pb = cp.Problem(cp.Minimize(objective), constraints)
111 pb.solve()
--> 112 return (jnp.array(x.value), jnp.array(pb.constraints[0].dual_value),
113 jnp.array(pb.constraints[1].dual_value))
114
/lib/python3.8/site-packages/jax/_src/numpy/lax_numpy.py in array(object, dtype, copy, order, ndmin)
3542 if type(object) is np.ndarray:
3543 _inferred_dtype = object.dtype and dtypes.canonicalize_dtype(object.dtype)
-> 3544 lax._check_user_dtype_supported(_inferred_dtype, "array")
3545 out = _np_array(object, copy=copy, dtype=dtype)
3546 if dtype: assert _dtype(out) == dtype
/lib/python3.8/site-packages/jax/_src/lax/lax.py in _check_user_dtype_supported(dtype, fun_name)
7011 msg = f"JAX only supports number and bool dtypes, got dtype {dtype}"
7012 msg += f" in {fun_name}" if fun_name else ""
-> 7013 raise TypeError(msg)
7014 if dtype is not None and np_dtype != dtypes.canonicalize_dtype(dtype):
7015 msg = ("Explicitly requested dtype {} {} is not available, "
TypeError: JAX only supports number and bool dtypes, got dtype object in array
Have an idea?
from jaxopt.
Algue-Rythme
commented on May 5, 2024
If my understanding of your constraints is correct you want vectors of coordinates (x,y) such that:
x+y == 1 # (1)
y == 1 # (2)
-x+y == -1 # (3)Clearly the problem is unfeasible: from (1) and (2) we have that x=0 and y=1 which contradicts (3). Your polyhedron is an empty set which causes the error.
In general, with N unknowns you want no more than N linear equality constraints, because either your problem is unfeasible, either some equality constraints are redundant (linear combination of others).
I agree that the error message is quite cryptic since we wrap over another library (cvxpy) without checking the feasiblity of the problem, assuming users would check the feasability themselves.
from jaxopt.
mblondel
commented on May 5, 2024
Indeed, the resulting QP was infeasible. With PR #76 we will now raise an exception.
from jaxopt.
jecampagne
commented on May 5, 2024

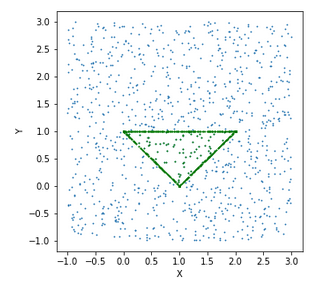

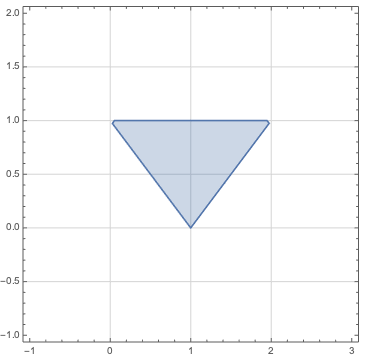

Of course your would have been right if the system had required equalities, but my use-case is a domain inside the lines
x+y >=1
y<=1
-x+y >= -1
x>=0
y>=0
Is it possible to get it with polyhedron projection?
from jaxopt.
Algue-Rythme
commented on May 5, 2024
Yes of course:
from jaxopt.projection import projection_polyhedron
import jax.numpy as jnp
import numpy as np
def myproj3(x):
A = np.array([[0, 0]])
b = np.array([0])
G = np.array([[-1, -1], [0, 1], [1, -1], [-1, 0], [0, -1]])
h = np.array([-1, 1, 1, 0, 0])
x = projection_polyhedron(x, hyperparams = (A, b, G, h))
return xPlease read the doc: https://jaxopt.github.io/stable/_autosummary/jaxopt.projection.projection_polyhedron.html
It clearly states that inequalities constraints should be put in matrices (G,h). If you don't want equality constraints you can put null constraint in matrices (A,b) (just like I did).
from jaxopt.
jecampagne
commented on May 5, 2024
@Algue-Rythme Thanks, I was a bit confused reading the doc and other material where A is the matrix of inequality. Sorry.
from jaxopt.
jecampagne
commented on May 5, 2024
I still have a crash
def f(x):
return x[0]**2-x[1]**2
A = jnp.array([[0, 0]])
b = jnp.array([0])
G = jnp.array([[-1, -1], [0, 1], [1, -1], [-1, 0], [0, -1]])
h = jnp.array([-1, 1, 1, 0, 0])
hyperparams = (A, b, G, h)
pg=jaxopt.ProjectedGradient(fun=f,projection=projection_polyhedron)
res_poly = pg.run(init_params=jnp.array([0.,1.]), hyperparams_proj=hyperparams)The end of TraceBack
....
/python3.8/site-packages/cvxpy/interface/numpy_interface/ndarray_interface.py in const_to_matrix(self, value, convert_scalars)
46 result = numpy.asarray(value).T
47 else:
---> 48 result = numpy.asarray(value)
49 if result.dtype in [complex, numpy.float64]:
50 return result
python3.8/site-packages/jax/core.py in __array__(self, *args, **kw)
476
477 def __array__(self, *args, **kw):
--> 478 raise TracerArrayConversionError(self)
479
480 def __index__(self):
TracerArrayConversionError: The numpy.ndarray conversion method __array__() was called on the JAX Tracer object Traced<ShapedArray(float64[2,2])>with<DynamicJaxprTrace(level=1/3)>
While tracing the function _body_fun at /python3.8/site-packages/jaxopt/_src/loop.py:55 for while_loop, this concrete value was not available in Python because it depends on the value of the argument '_val'.
See https://jax.readthedocs.io/en/latest/errors.html#jax.errors.TracerArrayConversionError
from jaxopt.
Algue-Rythme
commented on May 5, 2024
This is because by default the run() method will jit the projection (which cannot be jitted currently). You should pass jit=False to ProjectedGradient.
from jaxopt.
jecampagne
commented on May 5, 2024
Well well, jit=False in the jaxopt.ProjectedGradient call does not solve the crash and leads to the same error message.
from jaxopt.
Algue-Rythme
commented on May 5, 2024
The PR #79 should correct the bug. It will work with jit=False after the merge.
from jaxopt.
jecampagne
commented on May 5, 2024
Ok.
from jaxopt.
